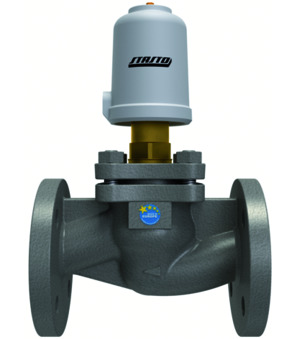

Pneumatically operated seat valve 65-0-6,5-3,1-10-125
pneumatically operated seat valve series SE07-GE; NC; body cast iron EN-GJL-250; seal EPDM; flange PN16; for liquids; closing against flow; medium temperature -10...+140°C; DN 65mm; operating pressure 0-6,5bar; control pressure 3,1-10bar; diameter actuator 125mm
Weight: 8.94 Kg
Short Itemnumber: SE0765GE1253
pneumatically operated seat valve series SE07-GE; NC; body cast iron EN-GJL-250; seal EPDM; flange PN16; for liquids; closing against flow; medium temperature -10...+140°C; DN 65mm; operating pressure 0-6,5bar; control pressure 3,1-10bar; diameter actuator 125mm
This product is no longer available.
| dimension | |
|---|---|
| DN | 65 mm |
| Diameter Actuator | 125 mm |
| pressure | |
| Operating pressure | 0...6,5 bar |
| Control pressure | 3,1...10 bar |
| characteristics | |
| Medium temperature | -10...+140 °C |
No spare parts are available for this product.
