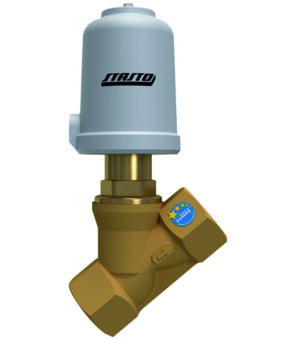

SE01-12-RV51-01
Pneumatically operated seat valve; NC; Body Bronze; Seal FKM; Female thread; For gaseous media; Closing with flow; Medium temperature -30...+200°C; G 1/2"; DN 15mm; Operating pressure 0-16bar; Control pressure 5-10bar; Diameter Actuator 50mm; High temperature design up to 200°C
Intrastat No.: 84818079
Country of origin: Germany
Weight: 1.16 Kg
Short Itemnumber: SE0112RV5101
Country of origin: Germany
Weight: 1.16 Kg
Short Itemnumber: SE0112RV5101
pneumatically operated seat valve; NC; body bronze; seal FKM; female thread; for gaseous media; closing with flow; medium temperature -30...+200°C; G 1/2"; DN 15mm; operating pressure 0-16bar; control pressure 5-10bar; diameter actuator 50mm; high temperature design up to 200°C
No Specifications
No spare parts are available for this product.
