SE01-10-ST51-07

SE01-10-ST51-07

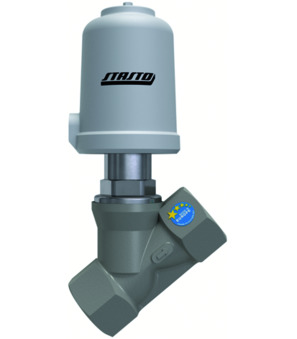

Pneumatically operated seat valve; High temperature design; ATEX Area 1, 21; NC; Body Stainless steel 1.4408; Seal PTFE; Female thread; For gaseous media; Closing with flow; Medium temperature -30...+200°C; G 1"; DN 25mm; Operating pressure 0…15bar; Control pressure 5…10bar; Diameter Actuator 50mm; Electrical position indicator with 2 microswitch - cable bushing

Intrastat No.: 84818079
Country of origin: Germany
Weight: 1.26 Kg
Short Itemnumber: SE0110ST5107
https://www.stasto.ro/web/image/product.template/161482/image_1920?unique=b5fa7f5

pneumatically operated seat valve; high temperature design; ATEX area 1, 21; NC; body stainless steel AISI 316; seal PTFE; female thread; for gaseous media; closing with flow; medium temperature -30...+200°C; G 1"; DN 25mm; operating pressure 0…15bar; control pressure 5…10bar; diameter actuator 50mm; electrical position indicator with 2 microswitch - cable bushing

5.091,30 lei 5091.3 RON 5.091,30 lei

Not Available For Sale

  • Design

This combination does not exist.

Availability:
Contact Us

Share

Design ATEX
No spare parts are available for this product.
