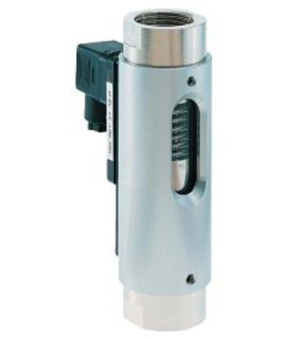

Flow monitors With Inspection glass 1"-30…90-10-250-3-158,5

Price.

4.881,70 lei
Flow monitors With Inspection glass Series RVO/U Store
  1. Products
  2. Armatures
  3. Pressure switches, measuring instruments and flow monitors
  4. Other materiales - A06
  5. Flow monitors With Inspection glass Series RVO/U
  6. RV0/U-1/90-VA
Flow monitors With Inspection glass 1"-30…90-10-250-3-158,5
Flow monitors With Inspection glass 1"-60...150-10-250-3-158,5
Flow monitors With Inspection glass 1"-60...150-10-250-3-158,5
4.881,70 lei
4.881,70 lei
Flow monitors With Inspection glass 1/2"-12…28-16-230-3-114
Flow monitors With Inspection glass 1/2"-12…28-16-230-3-114
999.999,00 lei
999.999,00 lei

Flow monitors With Inspection glass 1"-30…90-10-250-3-158,5

Flow monitors With Inspection glass Series RVO/U; Connections, Float Stainless steel AISI 316Ti; Body Aluminum Not wetted; For any mounting position; Medium temperature Max. 100°C; Water scale; NO contact; Connection 1"; Switching range 30…90L/min; Maximum pressure 10bar; U max. 250V; I max. 3A; Length 158,5mm

Intrastat No.: 90261081
Country of origin: Germany
Weight: 3.0 Kg
Short Itemnumber:RV0U190VA
https://www.stasto.ro/web/image/product.template/84062/image_1920?unique=a921185

Flow monitors With Inspection glass Series RVO/U; Connections, Float Stainless steel AISI 316Ti; Body Aluminum Not wetted; For any mounting position; Medium temperature Max. 100°C; Water scale; NO contact; Connection 1"; Switching range 30…90L/min; Maximum pressure 10bar; U max. 250V; I max. 3A; Length 158,5mm

4.881,70 lei 4881.7 RON 4.881,70 lei

Not Available For Sale

  • Connection
  • Length
  • U max.
  • I max.
  • Maximum pressure
  • Switching range

This combination does not exist.

Availability:
Contact Us
dimension
Connection 1"
Length 158,5 mm
Electrical key figures
U max. 250 V
I max. 3 A
pressure
Maximum pressure 10 bar
characteristics
Switching range 30...90 l/min

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Flow monitors With Inspection glass Series RVO/U_EN.pdf
Download

ZIP
Datové listy
1
Datový list_Průtokový spínač s Sklíčko série RVO/U_CS.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Strömungswächter mit Schauglas Serie RVO/U_DE.pdf
Download

ZIP
Adatlapok
1
Adatlap_áramlásjelzők hozzá kémlelő üveg sorozat RVO/U_HU.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_czujnik przepływu z wziernik Seria RVO/U_PL.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Senzorji pretoka s kontrolno okence serija RVO/U_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_indikatori protoka sa reviziono staklo serije RVO/U_SRLATIN.pdf
Download
No spare parts are available for this product.
