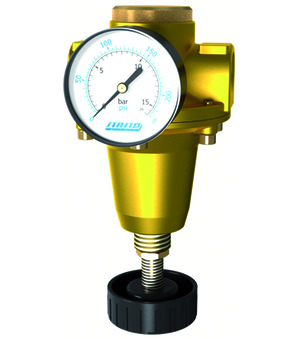

Pressure regulator RE23-12-0,5/25-MA
Pressure regulator Series Gold RE23; Relieving; Inlet pressure Max. 40bar; Connection 1/2"; Flow at 6bar/Δp=1bar 1250Nl/min; Pressure range 0,5-25bar
Intrastat No.: 84811099
Country of origin: Germany
Weight: 1.08 Kg
Short Itemnumber: RE23120.525MA
Country of origin: Germany
Weight: 1.08 Kg
Short Itemnumber: RE23120.525MA
Scope of delivery
pressure regulator, manometer
pressure regulator series Gold RE23; relieving; inlet pressure max. 40bar; connection 1/2"; flow at 6bar/Δp=1bar 1250Nl/min; pressure range 0,5-25bar
| dimension | |
|---|---|
| Connection | 1/2" |
| pressure | |
| Inlet pressure | 40 bar |
| Pressure range | 0,5...25 bar |
| characteristics | |
| Flow at 6bar/Δp=1bar | 1250 Nl/min |
| Others | |
| Brand | STASTO |
RE23-12-0,5/25
x 1.0 Pcs
RE23-12-0,5/25
Pressure regulator; Relieving; Inlet pressure Max. 40bar; Connection 1/2"; Flow at 6bar 1250Nl/min; Pressure range 0,5-25bar
MA001-50R-40
x 1.0 Pcs
Bourdon tube manometer MA001-50R-40
Bourdon tube manometer Series MA001; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 50mm; Indicating range 0-40; Unit bar; Connection 1/4"
