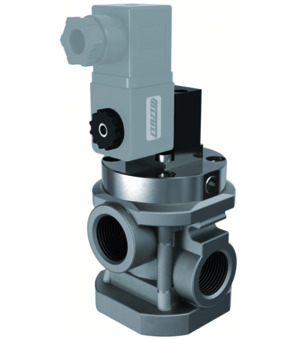

3/2-way poppet valve Series PV32W-A Store

PV32W1S6M10A-SCN23050-C003-31-CV20-6

PV32W1S6M10A-SCN23050-C003-31-CV20-6

PV32W1S6M10A
3/2-way poppet valve Series PV; Actuation Electrical/spring; Internal control air; Pressure range 3...10bar; NC; Type of coil SCN; Connector size 32mm; Connection 1"; Nominal diameter 25mm; Flow rate 13500Nl/min
SCN23050
Coil Type SCN; Connector size 32mm; Voltage 230V/50-60Hz
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC

Intrastat No.: 84812090
Country of origin: Italy
Weight: 1.42 Kg
Short Itemnumber:PV32W1S6M10ASCN23050C00331CV206

PV32W1S6M10A
3/2-way poppet valve series PV; actuation electrical/spring; internal control air; pressure range 3...10bar; NC; type of coil SCN; connector size 32mm; connection 1"; nominal diameter 25mm; flow rate 13500Nl/min
SCN23050
coil type SCN; connector size 32mm; voltage 230V/50-60Hz
C003-31-CV20-6
connector; connector size 32mm; with moulded PVC-cable (2 m); voltage 0...250VAC/DC

2.297,50 lei 2297.5 RON 2.297,50 lei

Connection
- 1"
DN
- 25 mm
Connector size
- 32 mm
Design
- With moulded PVC-cable (2 m)
Voltage
- 230V/50-60Hz
Voltage type
- -
Coil
- SCN
Flow rate
- 13500 Nl/min

This combination does not exist.

Availability:

Adaugă în coș

dimension
Connection	1"
DN	25 mm
Designs
Connector size	32 mm
design
Design	With moulded PVC-cable (2 m)
Electrical key figures
Voltage	230V/50-60Hz
characteristics
Coil	SCN
Flow rate	13500 Nl/min
