PV32W1S6E12V-SCN23050-C003-31-CV20-6

Price.

1.518,80 lei

Home
Search
⁰
Wishlist
Account

3/2-way poppet valve Series PV32W-V Store

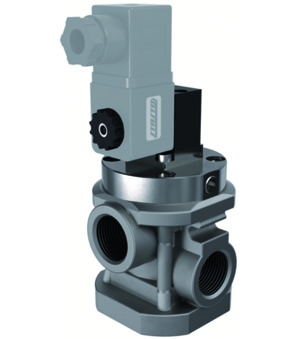

PV32W1S6E12V-SCN23050-C003-31-CV20-6

PV32W1S6E12V-SCN23050-C003-31-CV20-6

PV32W1S6E12V
3/2-way poppet valve Series PV; Actuation Electrical/spring; External control air connection; Pressure range -1...0bar; NC; Type of coil SCN; Connector size 32mm; Connection 1/2"; Nominal diameter 15mm; Control port M5; Flow rate 5500Nl/min
SCN23050
Coil Type SCN; Connector size 32mm; Voltage 230V/50-60Hz
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC

Intrastat No.: 84812090
Country of origin: Italy
Weight: 1.01 Kg
Short Itemnumber:PV32W1S6E12VSCN23050C00331CV206

PV32W1S6E12V
3/2-way poppet valve series PV; actuation electrical/spring; external control air connection; pressure range -1...0bar; NC; type of coil SCN; connector size 32mm; connection 1/2"; nominal diameter 15mm; control port M5; flow rate 5500Nl/min
SCN23050
coil type SCN; connector size 32mm; voltage 230V/50-60Hz
C003-31-CV20-6
connector; connector size 32mm; with moulded PVC-cable (2 m); voltage 0...250VAC/DC

1.518,80 lei 1518.8 RON 1.518,80 lei

Connection
- 1/2"
DN
- 15 mm
Control port
- M5
Connector size
- 32 mm
Design
- With moulded PVC-cable (2 m)
Voltage
- 230V/50-60Hz
Voltage type
- -
Coil
- SCN
Flow rate
- 5500 Nl/min

This combination does not exist.

Availability:

Adaugă în coș

dimension
Connection	1/2"
DN	15 mm
Control port	M5
Designs
Connector size	32 mm
design
Design	With moulded PVC-cable (2 m)
Electrical key figures
Voltage	230V/50-60Hz
characteristics
Coil	SCN
Flow rate	5500 Nl/min
