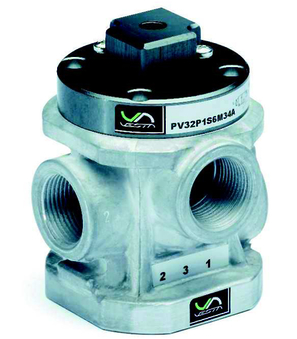

3/2-way poppet valve PV32P1S6M15A

3/2-way poppet valve PV32P1S6M15A

3/2-way poppet valve Series PV; Actuation Pneumatic/spring; Pressure range 3...10bar; NC; Connection 11/2"; Nominal diameter 40mm; Flow rate 35000Nl/min

Intrastat No.: 84812090
Country of origin: Italy
Weight: 3.15 Kg
Short Itemnumber: PV32P1S6M15A
https://www.stasto.ro/web/image/product.template/99005/image_1920?unique=133328d

3/2-way poppet valve series PV; actuation pneumatic/spring; pressure range 3...10bar; NC; connection 11/2"; nominal diameter 40mm; flow rate 35000Nl/min

5.263,70 lei 5263.7 RON 5.263,70 lei

Not Available For Sale

excl. tax
  • Connection
  • DN
  • Control port
  • Flow rate

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 1 1/2"
Flow rate 35000 Nl/min
Actuation Pneumatic/spring
Pressure range 3...10bar
All specifications (6)
Connection 1 1/2"
Flow rate 35000 Nl/min
Actuation Pneumatic/spring
Pressure range 3...10bar
DN 40 mm
Control port 1/8"
No spare parts are available for this product.
