PS100-18-C-MS03

PS100-18-C-MS03

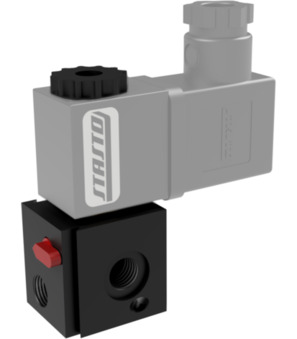

3/2-way valve; Directly operated; Battery valve, Optional expandable; Actuation Electrical/spring; Standard coil C001; 24VDC; Connector size 22mm; Connection 1/8"; Nominal diameter 1,2mm; Function NC; Pressure range 0-10bar; Flow rate 80Nl/min; With connector

Intrastat No.: 84812090
Country of origin: Italy
Weight: 0.133 Kg
Short Itemnumber: PS10018CMS03
https://www.stasto.ro/web/image/product.template/148979/image_1920?unique=86b0286

3/2-way valve; directly operated; battery valve, optional expandable; actuation electrical/spring; standard coil C001; 24VDC; connector size 22mm; connection 1/8"; nominal diameter 1,2mm; function NC; pressure range 0-10bar; flow rate 80Nl/min; with connector

250,40 lei 250.4 RON 250,40 lei

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 1/8"
Actuation Electrical/spring
Pressure range 0-10bar
Flow rate 80Nl/min
All specifications (5)
Connection 1/8"
Actuation Electrical/spring
Pressure range 0-10bar
Flow rate 80Nl/min
Brand STASTO
3/2-way valve PS125-18-C
PS125-18-C x 1.0 Pcs
3/2-way valve PS125-18-C
3/2-way valve Series PS125; Directly operated; Battery valve, Optional expandable; Actuation Electrical/spring; Standard coil C001; Connector size 22mm; Connection 1/8"; Nominal diameter 1,2mm; Function NC; Pressure range 0…10bar; Flow rate 90Nl/min
C001-03
C001-03 x 1.0 Pcs
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
C002-31-6 x 1.0 Pcs
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
