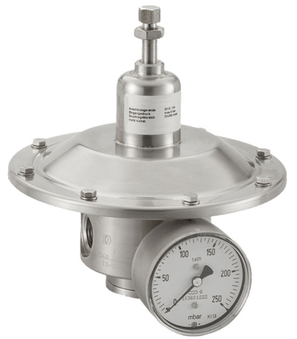

Low pressure regulator PR25-12-0,01/0,4
low pressure regulator series PR25; housing AISI 316L; seals FKM; medium temperature -20...+80°C; manometer connection 1/4"; connection G 1/2"; outlet G 1/2"; pressure range 0,01-0,4bar; max. inlet pressure 6bar; flow at 6bar/Δp=5bar 1400Nl/min; suitable manometer MA046-63R-400
Intrastat No.: 84811019
Country of origin: Italy
Short Itemnumber: PR25120.010.4
Country of origin: Italy
Short Itemnumber: PR25120.010.4
low pressure regulator series PR25; housing AISI 316L; seals FKM; medium temperature -20...+80°C; manometer connection 1/4"; connection G 1/2"; outlet G 1/2"; pressure range 0,01-0,4bar; max. inlet pressure 6bar; flow at 6bar/Δp=5bar 1400Nl/min; suitable manometer MA046-63R-400
| dimension | |
|---|---|
| Input connection | G 1/2" |
| pressure | |
| Pressure range | 0,02...0,2 bar |
| characteristics | |
| Max. inlet pressure | 6 bar |
| Suitable manometer | MA046-63R-250 |
| Flow rate at 6bar/Δp=5bar | 1000 Nl/min |
| Others | |
| Output thread | G 3/4" |
No spare parts are available for this product.
