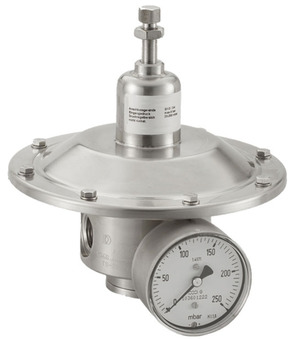

low pressure regulator; body AISI 316L; seals FKM; medium temperature -0...80°C; manometer connection 1/4"; medium nitrogen; connection G 1/2"; pressure range 0,01-0,4bar; max. inlet pressure 15bar; flow at 6bar/Δp=5bar 1400Nl/min; suitable manometer MA046-63R-600
Country of origin: Italy
Weight: 3.05 Kg
Short Itemnumber: PR25120.010.40
low pressure regulator; body AISI 316L; seals FKM; medium temperature -0...80°C; manometer connection 1/4"; medium nitrogen; connection G 1/2"; pressure range 0,01-0,4bar; max. inlet pressure 15bar; flow at 6bar/Δp=5bar 1400Nl/min; suitable manometer MA046-63R-600
Technical specifications
| Pressure range | 0,01...4 bar |
|---|---|
| Connection | G 1/2" |
| Input connection | G 1/2" |
| Max. inlet pressure | 15 bar |
| Pressure range | 0,01...4 bar |
| Connection | G 1/2" |
| Input connection | G 1/2" |
| Max. inlet pressure | 15 bar |
| Suitable manometer | MA046-63R-600 |
| Flow rate at 6bar/Δp=5bar | 1400 Nl/min |
| Output thread | G 1/2" |
PR25-12-0,01/0,4-0
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Niederdruckregler Serie PR25 · DE
Data sheet 1,7 MB Updated 13/06/2026
