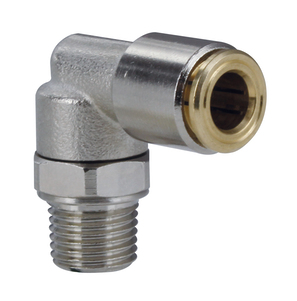

Swivel male elbow Series PM16C-360; Nickel plated brass; Conical thread; Pressure Max. 80bar; Diameter 6mm; Thread M10X1
Intrastat No.: 74122000
Country of origin: Italy
Weight: 0.03 Kg
Short Itemnumber: PM16C06M10X1N360
Country of origin: Italy
Weight: 0.03 Kg
Short Itemnumber: PM16C06M10X1N360
swivel male elbow series PM16C-360; nickel plated brass; conical thread; pressure max. 80bar; diameter 6mm; thread M10X1
Technical specifications
| Diameter | 6 mm |
|---|---|
| Thread | M10x1 |
| Thread | M10x1 |
| Diameter | 6 mm |
| Thread | M10x1 |
| Thread | M10x1 |
PM16C-06-M10X1-N-360
Documents
Language-independent
CAD / 3D
1-
STP
CADSTEP · PM16C06M10X1N360
CAD-STEP 350 KB Updated 04/10/2026
No spare parts are available for this product.
