PC60-40-648

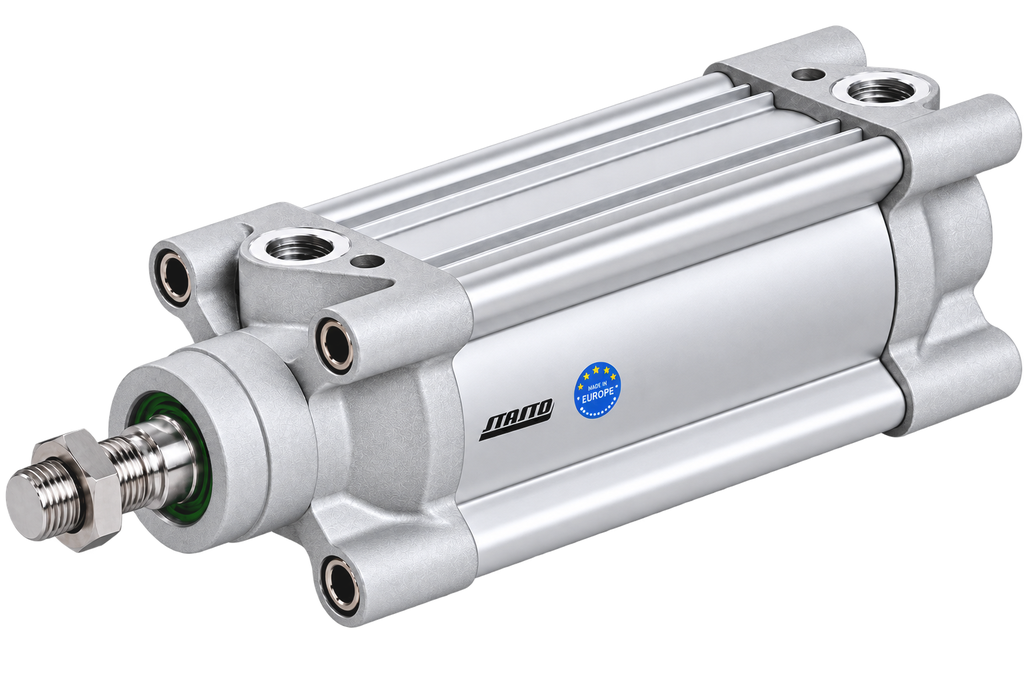

Profile magnetic cylinder Series PC60; According to ISO 15552, VDMA; Double acting; Pressure range 0,5...10bar; Adjustable cushions; Diameter 40mm; Stroke 648mm; Piston rod thread M12x1,25; Connection 1/4"; Push force at 6 bar 754N
Intrastat No.: 84123100
Country of origin: Italy
Short Itemnumber:PC6040648
Country of origin: Italy
Short Itemnumber:PC6040648
profile magnetic cylinder series PC60; according to ISO 15552, VDMA; double acting; pressure range 0,5...10bar; adjustable cushions; diameter 40mm; stroke 800mm; piston rod thread M12x1,25; connection 1/4"; push force at 6 bar 754N
| dimension | |
|---|---|
| Diameter | 40 mm |
| Connection | 1/4" |
| Stroke | 648 mm |
| Piston rod thread | M12x1,25 |
| function | |
| Function | Double acting |
| pressure | |
| Push force at 6 bar | 482 N |
| materials | |
| Seal | PU |
| characteristics | |
| Series | PC60 |
No spare parts are available for this product.
