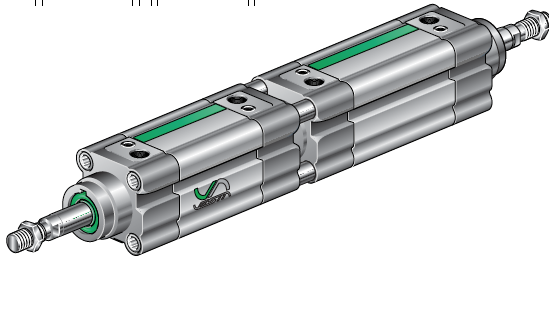

Profile magnetic cylinder PC10-80-300-250-R0-01

Profile magnetic cylinder PC10-80-300-250-R0-01

profile magnetic cylinder series PC10-R0; multi-position rear; according to ISO 15552, VDMA; double acting; pressure range 0,5...10bar; adjustable cushions; diameter 80mm; stroke 1 300mm; stroke 2 250mm; connection 3/8"; piston rod thread M20x1,5; push force at 6 bar 3014N; special version rod seal with circlip steel

Intrastat No.: 84123100
Country of origin: Italy Made in Europe
Weight: 9.6 Kg
Short Itemnumber: PC1080300250R001
https://www.stasto.ro/web/image/product.template/224660/image_1920?unique=1040839

profile magnetic cylinder series PC10-R0; multi-position rear; according to ISO 15552, VDMA; double acting; pressure range 0,5...10bar; adjustable cushions; diameter 80mm; stroke 1 300mm; stroke 2 250mm; connection 3/8"; piston rod thread M20x1,5; push force at 6 bar 3014N; special version rod seal with circlip steel

4.057,00 lei 4057.0 RON 4.057,00 lei

Not Available For Sale

excl. tax
  • Diameter
  • Connection
  • Piston rod thread
  • Stroke 1
  • Stroke 2
  • Function
  • Push force at 6 bar

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 3/8"
Pressure range 0,5...10bar
Diameter 80 mm
Stroke 1 300 mm
All specifications (8)
Connection 3/8"
Pressure range 0,5...10bar
Diameter 80 mm
Stroke 1 300 mm
Stroke 2 250 mm
Piston rod thread M20x1,5
Push force at 6 bar 3014 N
Function Double acting
No spare parts are available for this product.
