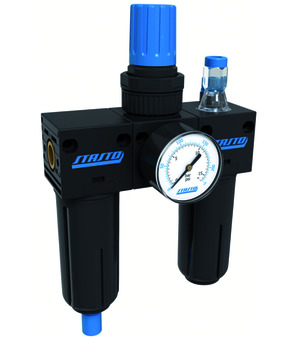

Maintenance unit 1/4"-980-16

Maintenance unit 1/4"-980-16

Maintenance unit Series MU301/FRL3; Relieving; Drain valve Semi-automatic; Pressure range 0,5...8bar; Filter element 20µm; Plastic bowl with protection cage; Connection 1/4"; Flow at 6,3bar/Δp=1bar 980Nl/min; Max. inlet pressure 16bar

Wartungseinheit Serie MU301/FRL3
Intrastat No.: 84811099
Country of origin: Italy
Weight: 0.54 Kg
Short Itemnumber: MU301140.58

Scope of delivery

maintenance unit, manometer, fastening nut
https://www.stasto.ro/web/image/product.template/109159/image_1920?unique=ac9b099

maintenance unit series MU301/FRL3; relieving; drain valve semi-automatic; pressure range 0,5...8bar; filter element 20µm; plastic bowl with protection cage; connection 1/4"; flow at 6,3bar/Δp=1bar 980Nl/min; max. inlet pressure 16bar

645,10 lei 645.1 RON 645,10 lei

Not Available For Sale

excl. tax
  • Connection
  • Max. inlet pressure
  • Filter element
  • Flow rate at 6.3bar/Δp=1bar
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 1/4"
Pressure range 0,5...8bar
Flow rate at 6.3bar/Δp=1bar 980 Nl/min
Max. inlet pressure 16 bar
All specifications (6)
Documents
Data sheets, drawings and CAD files
Connection 1/4"
Pressure range 0,5...8bar
Flow rate at 6.3bar/Δp=1bar 980 Nl/min
Max. inlet pressure 16 bar
Filter element 20 µm
Brand STASTO

MU301-14-0,5/8

Documents

3 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Assembly and Operating Instructions

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
K-EF-A
K-EF-A x 1.0 Pcs
K-EF-A
Filter element; Suitable for Filter Series F; Material Polyethylene; Connection 1/4"; Pore size 20µm
K-EF-G
K-EF-G x 1.0 Pcs
K-EF-G
Filter element; Suitable for Filter Series F; Material Polyethylene; Connection 1/4"; Pore size 5µm
RE01-14-0,5/8 x 1.0 Pcs
RE01-14-0,5/8
Pressure regulator; Relieving; Connection 1/4"; Flow at 6,3 bar 1200Nl/min; Pressure range 0,5-8bar; Max. inlet pressure 16bar; Without manometer
Bourdon tube manometer MA001-40R-10-D
MA001-40R-10-D x 1.0 Pcs
Bourdon tube manometer MA001-40R-10-D
Bourdon tube manometer Series MA001; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 40mm; Indicating range 0-10/0-145; Unit bar/psi; Connection 1/8"
Filter F-14-20-PE-SS
F-14-20-PE-SS x 1.0 Pcs
Filter F-14-20-PE-SS
Filter Series F; Drain valve Semi-automatic; Filter element 20µm; Plastic bowl with protection cage; Connection 1/4"; Flow at 6,3bar/Δp=1bar 800Nl/min; Max. inlet pressure 16bar
Lubricator L-14-PE
L-14-PE x 1.0 Pcs
Lubricator L-14-PE
Lubricator Series L; Plastic bowl with protection cage; Connection 1/4"; Flow at 6,3bar/Δp=1bar 1500Nl/min; Max. inlet pressure 16bar
KART0N109 x 1.0 Pcs
KART0N109
Packaging board, 220X125X86
