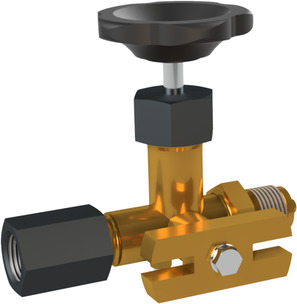

Manometer stop-valve Series MSV05; According to DIN 16271; Spigot/Tension sleeve with test flange 60x25x10; Connection 1/2"; Nominal pressure 250bar; Material Messing; Max. medium temperature 120°C; Seal PTFE
Country of origin: Germany
Weight: 0.73 Kg
Short Itemnumber: MSV0512B
manometer stop-valve series MSV05; according to DIN 16271; spigot/tension sleeve with test flange 60x25x10; connection 1/2"; nominal pressure 250bar; material Messing; max. medium temperature 120°C; seal PTFE
Technical specifications
| Connection | 1/2" |
|---|---|
| Operating pressure | Max. 250 bar |
| Material | Messing |
| Medium temperature | Max. 120 °C |
| Connection | 1/2" |
| Operating pressure | Max. 250 bar |
| Material | Messing |
| Medium temperature | Max. 120 °C |
| Seal | PTFE |
MSV05-12-B
