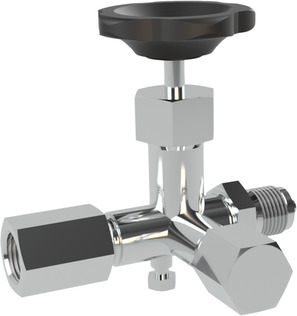

Manometer stop-valve Series MSV03; According to DIN 16271; Spigot/Tension sleeve with test spigot M20x1,5; Connection 1/2"; Nominal pressure 400bar; Material Edelstahl 1.4581; Max. medium temperature 200°C; Seal PTFE
Country of origin: Germany
Weight: 0.7 Kg
Short Itemnumber: MSV0312W
manometer stop-valve series MSV03; according to DIN 16271; spigot/tension sleeve with test spigot M20x1,5; connection 1/2"; nominal pressure 400bar; material Edelstahl 1.4581; max. medium temperature 200°C; seal PTFE
Technical specifications
| Connection | 1/2" |
|---|---|
| Operating pressure | Max. 400 bar |
| Material | Stainless steel AISI 316Ti |
| Medium temperature | Max. 200 °C |
| Connection | 1/2" |
| Operating pressure | Max. 400 bar |
| Material | Stainless steel AISI 316Ti |
| Medium temperature | Max. 200 °C |
| Seal | PTFE |
MSV03-12-W
