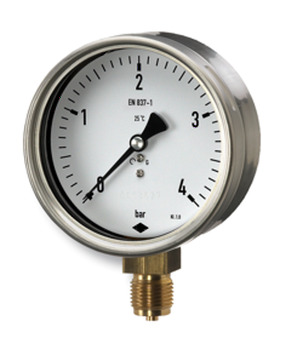

Bourdon tube manometer MA036-100B-0,6V

Bourdon tube manometer MA036-100B-0,6V

Bourdon tube manometer Series MA036-B; Body Stainless steel AISI 304; Measuring unit, Motion work Copper based alloy; Front glass Mineral glass; Connection Below; Ambient temperature -40...+60°C; Medium temperature Max. +60°C; Class 1,0; Diameter 100mm; Indicating range -0,6...0; Unit bar; Connection 1/2"

Intrastat No.: 90262040
Country of origin: Austria
Weight: 1.0 Kg
Short Itemnumber: MA036100B0.6V
https://www.stasto.ro/web/image/product.template/118073/image_1920?unique=18178df

bourdon tube manometer series MA036-B; body stainless steel AISI 304; measuring unit, motion work copper based alloy; front glass mineral glass; connection below; ambient temperature -40...+60°C; medium temperature max. +60°C; class 1,0; diameter 100mm; indicating range -0,6...0; unit bar; connection 1/2"

970,50 lei 970.5 RON 970,50 lei

Not Available For Sale

excl. tax
  • Diameter
  • Connection
  • Indicating range
  • Unit

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 1/2"
Diameter 100 mm
Indicating range -0,6...0
Unit bar
Documents
Data sheets, drawings and CAD files
Connection 1/2"
Diameter 100 mm
Indicating range -0,6...0
Unit bar

MA036-100B-0,6V

Documents

2 Documents 7 Languages

Czech / Čeština
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

CAD / 3D

1
No spare parts are available for this product.
