KRE053-90

KRE053-90

STASTO Combination
Fully assembled and tested

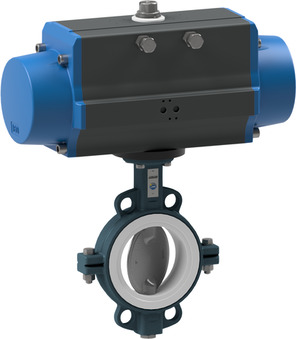

Butterfly valve with pneumatic actuator; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Double acting actuator; Control pressure 5,5...8bar; Pinion turned by 90°; Medium temperature -10...+130°C; Pressure range 0...10bar; DN 50mm; Length 43mm; Actuator PAD063-B; Actuator mounted 90° twisted; Special adjustment end position Closed

Intrastat No.: 84818085
Country of origin: Italy
Weight: 4.587 Kg
Short Itemnumber: KRE05390
https://www.stasto.ro/web/image/product.template/181512/image_1920?unique=9376c83

STASTO Combination
fully assembled and tested
butterfly valve with pneumatic actuator; wafer type; length according to EN558−1 R20; body ductile iron EN-GJS-400-15 epoxy coated; disc AISI 316; shaft AISI 430; liner EPDM; nominal flange pressure PN10/16/ANSI150; double acting actuator; control pressure 5,5...8bar; pinion turned by 90°; medium temperature -10...+130°C; pressure range 0...10bar; DN 50mm; length 43mm; actuator PAD063-B; actuator mounted 90° twisted; special adjustment end position closed

1.916,60 lei 1916.6 RON 1.916,60 lei

Not Available For Sale

  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Function
  • Connector size
  • Ball
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

No Specifications
BUW6-050-DSE-B x 1.0
Butterfly valve with bare shaft BUW6-050-DSE-B
Butterfly valve with bare shaft Series BUW1-DSE-B, BUW2-DSE-B, BUW6-DSE-B, BUWC-DSE-B, BUWV-DSE-B, BUWZ-DSE-B; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 50mm; Length 43mm; Pressure range 0…16bar; Flange PN10/16/ANSI150
Add to Cart
Pneumatic actuator PAD063-B
PAD063-B x 1.0
Pneumatic actuator PAD063-B
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion turned by 90°; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
Add to Cart
