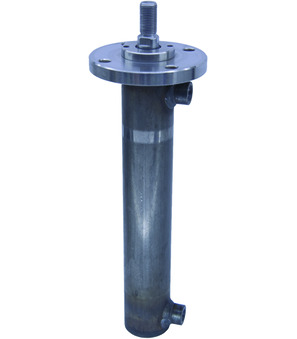

Hydraulic cylinder Double acting HMF6500400
Hydraulic cylinder Double acting Series HMF; Flange bracket, With thread at the piston rod; Piston-rod Made of steel C45, 25µm chromium plated +/-5µm; Cylinder tube St 52.3 DIN2393 ISO H9; Seals NBR; Temperature range -25...+80°C; Max. Piston speed 0,5m/s.; PMax. 200bar; Diameter Piston 100mm; Diameter Rod 50mm; Stroke 400mm; Piston rod thread M36x2; Connection 1/2"
Intrastat No.: 84311000
Country of origin: Italy
Weight: 0.53 Kg
Short Itemnumber:HMF6500400
Country of origin: Italy
Weight: 0.53 Kg
Short Itemnumber:HMF6500400
Hydraulic cylinder Double acting Series HMF; Flange bracket, With thread at the piston rod; Piston-rod Made of steel C45, 25µm chromium plated +/-5µm; Cylinder tube St 52.3 DIN2393 ISO H9; Seals NBR; Temperature range -25...+80°C; Max. Piston speed 0,5m/s.; PMax. 200bar; Diameter Piston 100mm; Diameter Rod 50mm; Stroke 400mm; Piston rod thread M36x2; Connection 1/2"
| Connection | 1/2" |
| Stroke | 400 mm |
| Piston rod thread | M36x2 |
| Piston diameter | 100 mm |
| Diameter Rod | 50 mm |
No spare parts are available for this product.
