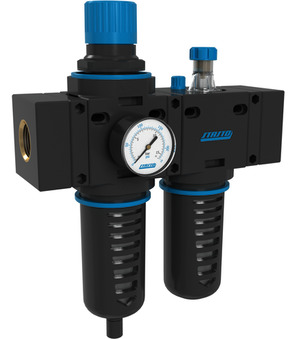

Maintenance unit 3/4"-2200-12,5

Maintenance unit 3/4"-2200-12,5

Maintenance unit; Relieving; Drain valve Semi-automatic; Pressure range 0,5...8bar; Filter element 5ym; Plastic bowl with protection cage; Connection 3/4"; Flow at 6,3bar/Δp=1bar 2200Nl/min; Max. inlet pressure 12,5bar

Intrastat No.: 84811099
Country of origin: Italy
Weight: 1.68 Kg
Short Itemnumber: FRL340508RPESS
https://www.stasto.ro/web/image/product.template/112824/image_1920?unique=e5827b0

maintenance unit; relieving; drain valve semi-automatic; pressure range 0,5...8bar; filter element 5ym; plastic bowl with protection cage; connection 3/4"; flow at 6,3bar/Δp=1bar 2200Nl/min; max. inlet pressure 12,5bar

1.193,90 lei 1193.9 RON 1.193,90 lei

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 3/4"
Pressure range 0,5...8bar
Brand STASTO
Connection 3/4"
Pressure range 0,5...8bar
Brand STASTO
FR-34-20-08-R-PE-SS-X x 1.0 Pcs
FR-34-20-08-R-PE-SS-X
Filter regulator; Relieving; Drain valve Semi-automatic; Pressure range 0,5...8bar; Filter element 20ym; Plastic bowl with protection cage; Connection 3/4"; Flow at 6,3bar/Δp=1bar 2880Nl/min; Max. inlet pressure 12,5bar; Without manometer
Lubricator L-34-PE
L-34-PE x 1.0 Pcs
Lubricator L-34-PE
Lubricator Series L; Plastic bowl with protection cage; Connection 3/4"; Flow at 6,3bar/Δp=1bar 3000Nl/min; Max. inlet pressure 12,5bar
K-AU-N
K-AU-N x 1.0 Pcs
K-AU-N
Connection set; For 2 devices size 3/4"
Bourdon tube manometer MA001-40R-10-D
MA001-40R-10-D x 1.0 Pcs
Bourdon tube manometer MA001-40R-10-D
Bourdon tube manometer Series MA001; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 40mm; Indicating range 0-10/0-145; Unit bar/psi; Connection 1/8"
