FR03-34H-0,5/10-M-A

Price.

2.074,20 lei
Filter regulator Series Modul FR03-M-A Store
  1. Products
  2. Pneumatics
  3. Regulators, filters and lubricators
  4. Other materiales - P07
  5. Filter regulator Series Modul FR03-M-A
  6. FR03-34H-0,5/10-M-A
FR03-34H-0,5/10-M-A
FE-FI20-12H/34-F3
FE-FI20-12H/34-F3
612,00 lei
612,00 lei
FE-FI20-10H/114-F3
FE-FI20-10H/114-F3
1.012,90 lei
1.012,90 lei

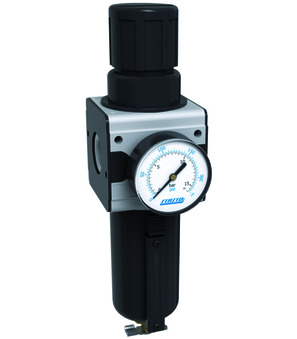

FR03-34H-0,5/10-M-A

Filter regulator Series Modul FR03-M; Relieving; Drain valve Automatically; Inlet pressure Max. 1,5...16bar; Pressure range 0,5...10bar; Metal bowl; Filter element 5µm; Connection 3/4"; Flow at 6bar/Δp=1bar 11400Nl/min; Filter element 5µm

Intrastat No.: 84811005
Country of origin: Germany
Weight: 1.75 Kg
Short Itemnumber:FR0334H0.510MA
https://www.stasto.ro/web/image/product.template/176645/image_1920?unique=e5e4a60

filter regulator series Modul FR03-M; relieving; drain valve automatically; inlet pressure max. 1,5...16bar; pressure range 0,5...10bar; metal bowl; filter element 5µm; connection 3/4"; flow at 6bar/Δp=1bar 11400Nl/min; filter element 5µm

2.074,20 lei 2074.2 RON 2.074,20 lei

Not Available For Sale

    This combination does not exist.

    Availability:
    Contact Us
    No Specifications

    Data sheets, Instructions, 3D-files and Certificates...

    In your language
    ZIP
    Data Sheets
    1
    Data sheet_FR03-34H-0,5/10-M-A_EN.pdf
    Download

    ZIP
    Datové listy
    1
    Datový list_FR03-34H-0,5/10-M-A_CS.pdf
    Download

    ZIP
    Datenblätter
    1
    Datenblatt_FR03-34H-0,5/10-M-A_DE.pdf
    Download

    ZIP
    Adatlapok
    1
    Adatlap_FR03-34H-0,5/10-M-A_HU.pdf
    Download

    ZIP
    Karty katalogowe
    1
    Arkusz danych_FR03-34H-0,5/10-M-A_PL.pdf
    Download

    ZIP
    Podatkovni listi
    1
    Podatkovni list_FR03-34H-0,5/10-M-A_SL.pdf
    Download

    ZIP
    Data Sheets
    1
    Tehnički list_FR03-34H-0,5/10-M-A_SRLATIN.pdf
    Download
    FR03-34H-0,5/10-M-X
    FR03-34H-0,5/10-M-X x 1.0
    FR03-34H-0,5/10-M-X
    Filter regulator; Relieving; Drain valve Semi-automatic; Inlet pressure Max. 16bar; Pressure range 0,5...10bar; Metal bowl; Connection 3/4"; Flow at 6bar 14000Nl/min; Filter element 5ym; Bowl With transparent inspection pipe
    Add to Cart
    Bourdon tube manometer MA001-50R-16-D
    MA001-50R-16-D x 1.0
    Bourdon tube manometer MA001-50R-16-D
    Bourdon tube manometer Series MA001; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 50mm; Indicating range 0-16/0-230; Unit bar/psi; Connection 1/4"
    Add to Cart
    MDV03-N0
    MDV03-N0 x 1.0
    MDV03-N0
    Automatic valve for drainage of condensate; Connection M14x1; Condensat drain 1/8"; Inlet pressure 1,5...16bar; Suitable to series FI03, FR03, FI04, FR04, FI18, FR18
    Add to Cart
    Accessories
