FR03-10H-0,1/3-M

FR03-10H-0,1/3-M

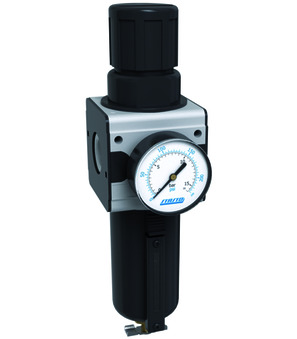

Filter regulator; Relieving; Drain valve Semi-automatic; Inlet pressure Max. 16bar; Pressure range 0,1...3bar; Metal bowl; Connection 1"; Flow at 6bar/Δp=1bar 12000Nl/min; Filter element 5µm; Bowl With transparent inspection pipe

Intrastat No.: 84811005
Country of origin: Germany
Weight: 2.65 Kg
Short Itemnumber: FR0310H0.13M
https://www.stasto.ro/web/image/product.template/154900/image_1920?unique=eb91815

filter regulator; relieving; drain valve semi-automatic; inlet pressure max. 16bar; pressure range 0,1...3bar; metal bowl; connection 1"; flow at 6bar/Δp=1bar 12000Nl/min; filter element 5µm; bowl with transparent inspection pipe

2.382,20 lei 2382.2 RON 2.382,20 lei

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 1"
Pressure range 0,1...3bar
Brand STASTO
Connection 1"
Pressure range 0,1...3bar
Brand STASTO
FR03-10H-0,1/3-X
FR03-10H-0,1/3-X x 1.0 Pcs
FR03-10H-0,1/3-X
Filter regulator; Relieving; Drain valve Semi-automatic; Inlet pressure Max. 16bar; Plastic bowl; Connection 1"; Flow at 6bar 12000Nl/min; Pressure range 0,1-3bar; Filter element, 5µm
B0AV-FI03-12/10H-M
B0AV-FI03-12/10H-M x 1.0 Pcs
B0AV-FI03-12/10H-M
Metal bowl; Suitable for Filter, Filter regulator Series Modul FI/FR03-M; Connection 1/2", 3/4", 1"; Drain valve automatisch; Inspection pipe ja
Bourdon tube manometer MA001-63R-4-D
MA001-63R-4-D x 1.0 Pcs
Bourdon tube manometer MA001-63R-4-D
Bourdon tube manometer Series MA001; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 63mm; Indicating range 0-4/0-58; Unit bar/psi; Connection 1/4"
