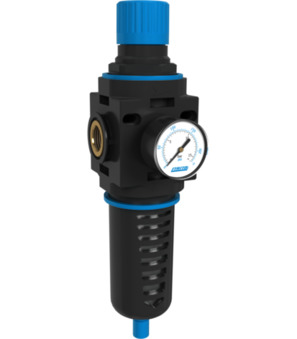

FR-38-20-04-R-PE-SS

FR-38-20-04-R-PE-SS

Filter regulator; Relieving; Drain valve Semi-automatic; Pressure range 0,5...4bar; Filter element 20µm; Plastic bowl with protection cage; Connection 3/8"; Flow at 6,3bar/Δp=1bar 2100Nl/min; Max. inlet pressure 12,5bar

Intrastat No.: 84811099
Country of origin: Italy
Weight: 0.57 Kg
Short Itemnumber: FR382004RPESS
https://www.stasto.ro/web/image/product.template/143627/image_1920?unique=1a33902

filter regulator; relieving; drain valve semi-automatic; pressure range 0,5...4bar; filter element 20µm; plastic bowl with protection cage; connection 3/8"; flow at 6,3bar/Δp=1bar 2100Nl/min; max. inlet pressure 12,5bar

467,20 lei 467.2 RON 467,20 lei

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 3/8"
Pressure range 0,5...4bar
Brand STASTO
Connection 3/8"
Pressure range 0,5...4bar
Brand STASTO
FR-38-20-08-R-PE-SS-X x 1.0 Pcs
FR-38-20-08-R-PE-SS-X
Filter regulator; Relieving; Drain valve Semi-automatic; Pressure range 0,5...8bar; Filter element 20ym; Plastic bowl with protection cage; Connection 3/8"; Flow at 6,3bar/Δp=1bar 2100Nl/min; Max. inlet pressure 12,5bar; Without manometer
Bourdon tube manometer MA001-40R-6-D
MA001-40R-6-D x 1.0 Pcs
Bourdon tube manometer MA001-40R-6-D
Bourdon tube manometer Series MA001; Body Sheet steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 40mm; Indicating range 0-6/0-87; Unit bar/psi; Connection 1/8"
K-RS38-04 x 1.0 Pcs
K-RS38-04
Compression spring for Pressure regulator R-38, FR38; 4bar
