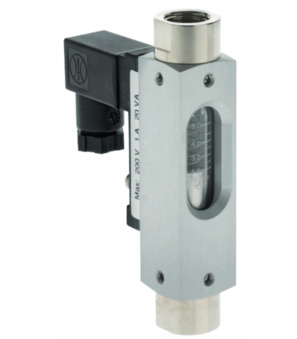

Flow monitors With Inspection glass 1/4"-0,2...1,3-16-150-1-90
Flow monitors With Inspection glass Series FM42-N; Connections, Float Nickel plated brass; Body Aluminum Not wetted; For any mounting position; Medium temperature Max. 100°C; Air scale; Switching range at 1 bar absolute; 20°C; Change-over contact; Connection 1/4"; Switching range 0,2...1,3Nl/min; Maximum pressure 16bar; U max. 150V; I max. 1A; Length 90mm
Intrastat No.: 90268080
Country of origin: Germany
Weight: 0.13 Kg
Short Itemnumber: FM4214N1.301
Country of origin: Germany
Weight: 0.13 Kg
Short Itemnumber: FM4214N1.301
flow monitors with inspection glass series FM42-N; connections, float nickel plated brass; body aluminum not wetted; for any mounting position; medium temperature max. 100°C; air scale; switching range at 1 bar absolute; 20°C; change-over contact; connection 1/4"; switching range 0,2...1,3Nl/min; maximum pressure 16bar; U max. 150V; I max. 1A; length 90mm
