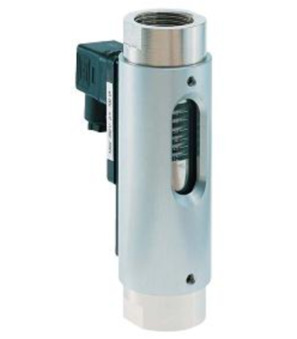

Flow monitors With Inspection glass Series FM10-N; Connections, Float Nickel plated brass; Body Aluminum Not wetted; For any mounting position; Medium temperature Max. 100°C; Water scale; NO contact; Connection 3/4"; Switching range 8…30L/min; Maximum pressure 10bar; U max. 250V; I max. 3A; Length 138,5mm
Country of origin: Germany
Weight: 0.78 Kg
Short Itemnumber: FM1034N30
Scope of delivery
flow monitors with inspection glass series FM10-N; connections, float nickel plated brass; body aluminum not wetted; for any mounting position; medium temperature max. 100°C; water scale; NO contact; connection 3/4"; switching range 8…30l/min; maximum pressure 10bar; U max. 250V; I max. 3A; length 144,5mm
Technical specifications
| Connection | 3/4" |
|---|---|
| Switching range | 8...30 l/min |
| Maximum pressure | 10 bar |
| U max. | 250 V |
| Connection | 3/4" |
| Switching range | 8...30 l/min |
| Maximum pressure | 10 bar |
| U max. | 250 V |
| I max. | 3 A |
| Length | 144,5 mm |
| Length | 138,5 mm |
FM10-34-N-30
