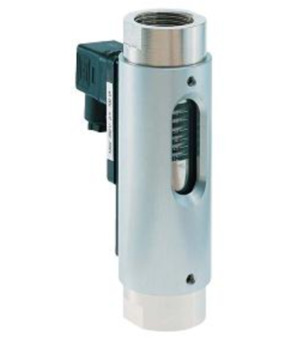

Flow monitors With Inspection glass 1/4"-0,025…0,13-16-AC140/DC200-AC0,7/DC1-90
Flow monitors With Inspection glass Series FM10-W; Connections, Float Stainless steel AISI 316Ti; Body Aluminum Not wetted; For any mounting position; Medium temperature Max. 100°C; Water scale; NO contact; Connection 1/4"; Switching range 0,025…0,13L/min; Maximum pressure 16bar; U max. AC140/DC200V; I max. AC0,7/DC1A; Length 90mm
Intrastat No.: 90261081
Country of origin: Germany
Weight: 0.14 Kg
Short Itemnumber:FM1014W0.13
Country of origin: Germany
Weight: 0.14 Kg
Short Itemnumber:FM1014W0.13
flow monitors with inspection glass series FM10-W; connections, float stainless steel AISI 316Ti; body aluminum not wetted; for any mounting position; medium temperature max. 100°C; water scale; NO contact; connection 1/4"; switching range 0,025…0,13l/min; maximum pressure 16bar; U max. AC140/DC200V; I max. AC0,7/DC1A; length 90mm
| dimension | |
|---|---|
| Connection | 1/4" |
| Length | 90 mm |
| Electrical key figures | |
| U max. | AC140/DC200 V |
| I max. | AC0,7/DC1 A |
| pressure | |
| Maximum pressure | 16 bar |
| characteristics | |
| Switching range | 0,025...0,13 l/min |
No spare parts are available for this product.
