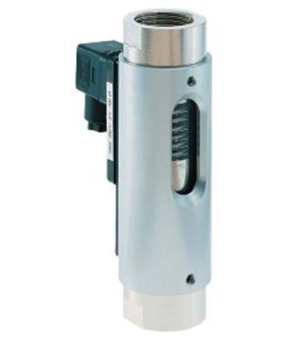

Flow monitors With Inspection glass Series FM10-N; Connections, Float Nickel plated brass; Body Aluminum Not wetted; For any mounting position; Medium temperature Max. 100°C; Water scale; NO contact; Connection 1/4"; Switching range 0,5…3L/min; Maximum pressure 16bar; U max. AC140/DC200V; I max. AC0,7/DC1A; Length 90mm
Country of origin: Germany
Weight: 0.13 Kg
Short Itemnumber: FM1014N3
Scope of delivery
flow monitors with inspection glass series FM10-N; connections, float nickel plated brass; body aluminum not wetted; for any mounting position; medium temperature max. 100°C; water scale; NO contact; connection 1/4"; switching range 0,5…3l/min; maximum pressure 16bar; U max. AC140/DC200V; I max. AC0,7/DC1A; length 90mm
Technical specifications
| Connection | 1/4" |
|---|---|
| Switching range | 0,5...3 l/min |
| Maximum pressure | 16 bar |
| U max. | AC140/DC200 V |
| Connection | 1/4" |
| Switching range | 0,5...3 l/min |
| Maximum pressure | 16 bar |
| U max. | AC140/DC200 V |
| I max. | AC0,7/DC1 A |
| Length | 90 mm |
FM10-14-N-3
