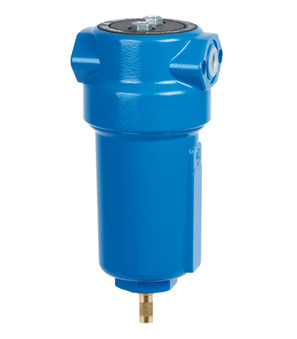

Preliminary filter FI33-20H-F1-A

Preliminary filter FI33-20H-F1-A

Preliminary filter Series FI33-F1-A; Automatic valve for drainage of condensate; Inlet pressure 1,5...16bar; Metal bowl; To separate solid particles; Compressed air quality According to ISO 8573-1, Dust Class 3; Filter element 1µm; Connection 2"; Flow at 6bar/Δp=0,02bar 22000Nl/min

Intrastat No.: 84213925
Country of origin: Slovenia
Weight: 8.76 Kg
Short Itemnumber:FI3320HF1A

preliminary filter series FI33-F1-A; automatic valve for drainage of condensate; inlet pressure 1,5...16bar; metal bowl; to separate solid particles; compressed air quality according to ISO 8573-1, dust class 3; filter element 1µm; connection 2"; flow at 6bar/Δp=0,02bar 22000Nl/min

4.872,50 lei 4872.5 RON 4.872,50 lei

Connection
- 2"
Dimension
- 20H
Flow rate at 6bar/Δp=0.02bar
- 22000 Nl/min

This combination does not exist.

Availability:

Adaugă în coș

dimension
Connection	2"
Dimension	20H
characteristics
Flow rate at 6bar/Δp=0.02bar	22000 Nl/min

Data sheets, Instructions, 3D-files and Certificates...

In your language

Declarations of Conformity

1

Declaration of conformity_Preliminary filter Series FI33-F1-A_EN.pdf

Prohlášení o shodě

1

Prohlášení o shodě_předfiltr série FI33-F1-A_CS.pdf

Konformitätserklärungen

1

Konformitätserklärung_Vorfilter Serie FI33-F1-A_DE.pdf

Megfelelőségi nyilatkozatok

1

Megfelelőségi nyilatkozat_előszűrő sorozat FI33-F1-A_HU.pdf

Deklaracje zgodności

1

Deklaracja zgodności_filtr wstępny Seria FI33-F1-A_PL.pdf

Izjave o skladnosti

1

Izjava o skladnosti_Predfilter serija FI33-F1-A_SL.pdf

Declarations of Conformity

1

Deklaracija o usklađenosti_predfilter serije FI33-F1-A_SRLATIN.pdf

Filter housing FI33-20H-W

FI33-20H-W x 1.0

Filter housing FI33-20H-W

Filter housing Series FI33-W; Inlet pressure Max. 16bar; Metal bowl; Connection 2"

FE-FI33-20H-F1

FE-FI33-20H-F1 x 1.0

FE-FI33-20H-F1

Filter element; Suitable for Preliminary filter Series FI33-F1; Connection 2"

MDV04

MDV04 x 1.0

MDV04

Automatic valve for drainage of condensate; Connection 1/2"; Condensat drain 8mm; Inlet pressure 1,5...16bar; Suitable to series FI33
