Preliminary filter 1"-2904

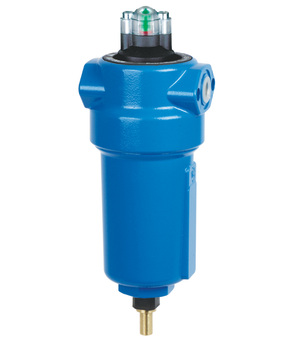

Preliminary filter 1"-2904

Preliminary filter Series FI33-F1-A-DI; Automatic valve for drainage of condensate; Inlet pressure 1,5...16bar; Metal bowl; To separate solid particles; Compressed air quality According to ISO 8573-1, Dust Class 3; Filter element 1µm; Connection 1"; Flow at 6bar/Δp=0,02bar 2904Nl/min

Vorfilter Serie FI33-F1-A-DI
Vorfilter Serie FI33-F1-A-DI
Intrastat No.: 84213925
Country of origin: Slovenia
Weight: 1.34 Kg
Short Itemnumber: FI3310F1ADI

Scope of delivery

preliminary filter, differential pressure indicator
https://www.stasto.ro/web/image/product.template/161320/image_1920?unique=f74ee88

preliminary filter series FI33-F1-A-DI; automatic valve for drainage of condensate; inlet pressure 1,5...16bar; metal bowl; to separate solid particles; compressed air quality according to ISO 8573-1, dust class 3; filter element 1µm; connection 1"; flow at 6bar/Δp=0,02bar 2904Nl/min

1.801,80 lei 1801.8 RON 1.801,80 lei

Not Available For Sale

excl. tax
  • Connection
  • Dimension
  • Flow rate at 6bar/Δp=0.02bar
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 1"
Flow rate at 6bar/Δp=0.02bar 2904 Nl/min
Brand STASTO
Documents
Data sheets, drawings and CAD files
Connection 1"
Flow rate at 6bar/Δp=0.02bar 2904 Nl/min
Brand STASTO

FI33-10-F1-A-DI

Documents

1 Documents 7 Languages

Czech / Čeština
ZIP

Declarations of Conformity

1
German / Deutsch
ZIP

Declarations of Conformity

1
English
ZIP

Declarations of Conformity

1
Hungarian / Magyar
ZIP

Declarations of Conformity

1
Polish / Język polski
ZIP

Declarations of Conformity

1
Slovenian / slovenščina
ZIP

Declarations of Conformity

1
Serbian (Latin) / srpski
ZIP

Declarations of Conformity

1
Filter housing FI33-10-W
FI33-10-W x 1.0 Pcs
Filter housing FI33-10-W
Filter housing Series FI33-W; Inlet pressure Max. 16bar; Metal bowl; Connection 1"
FE-FI33-10-F1
FE-FI33-10-F1 x 1.0 Pcs
FE-FI33-10-F1
Filter element; Suitable for Preliminary filter Series FI33-F1; Connection 1"
DI-FI33
DI-FI33 x 1.0 Pcs
DI-FI33
Differential pressure indicator; Scaling 0...0,6bar (Green area); 0,6...0,9bar (Red area); Operating pressure Max. 16bar
MDV04
MDV04 x 1.0 Pcs
MDV04
Automatic valve for drainage of condensate; Connection 1/2"; Condensat drain 8mm; Inlet pressure 1,5...16bar; Suitable to series FI33
