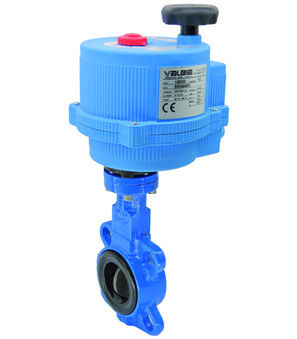

E-149G011298-VB060L

Butterfly valve Series Sylax; Wafer type; According to ISO 5752; Body Cast iron EN-GJL-250 Epoxy coated; Disc 1.4408; Shaft 1.4028; Liner EPDM; Nominal flange pressure PN6/10/16; Medium temperature -10...+110 °C; DN 80mm; Length 46mm; Pressure range 0-16bar

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 24VAC/DC; Protection class IP67

Square adapter Series VK; 14X11; Length 16mm; Material Stahl
