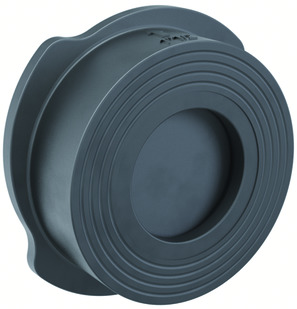

Check valve CH090-25-3C
Check valve; Wafer type; Body 1.4401; Disc 1.4401; Seal PTFE; Medium temperature -50...+250°C; DN 25mm; Length 22mm; Druckbereich 0...40bar; Nominal flange pressure PN10/16/25/40; ANSI150/300; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
Intrastat No.: 84813091
Country of origin: Italy
Weight: 0.15 Kg
Short Itemnumber: CH090253C
Country of origin: Italy
Weight: 0.15 Kg
Short Itemnumber: CH090253C
check valve; wafer type; body AISI 316; disc AISI 316; seal PTFE; medium temperature -50...+250°C; DN 25mm; length 22mm; Druckbereich 0...40bar; nominal flange pressure PN10/16/25/40; ANSI150/300; incl. inspection certificate EN-10204-3.1; for material, pressure and tightness
| dimension | |
|---|---|
| DN | 25 mm |
| Length | 22 mm |
| Flange | PN10/16/25/40, ANSI150/300 |
| materials | |
| Seal | PTFE |
| characteristics | |
| Medium temperature | -50...+250°C |
No spare parts are available for this product.
