CH011-100-A

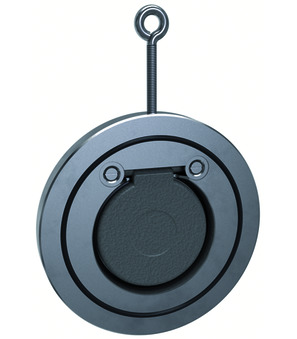

Swing check valve Series CH011-A; Wafer type; Reset by its own weight; Body, Disc 1.4401; Seal FKM; Medium temperature -50…+260°C; DN 100mm; Length 18mm; Nominal flange pressure PN10/16; Incl. ATEX Declaration of Conformity
Intrastat No.: 84813091
Country of origin: Italy
Weight: 2.4 Kg
Short Itemnumber: CH011100A
Country of origin: Italy
Weight: 2.4 Kg
Short Itemnumber: CH011100A
swing check valve series CH011-A; wafer type; reset by its own weight; body, disc AISI 316; seal FKM; medium temperature -50…+260°C; DN 100mm; length 18mm; nominal flange pressure PN10/16; incl. ATEX Declaration of Conformity
| dimension | |
|---|---|
| DN | 100 mm |
| Length | 18 mm |
| Flange | PN10/16 |
| design | |
| Design | ATEX |
No spare parts are available for this product.
