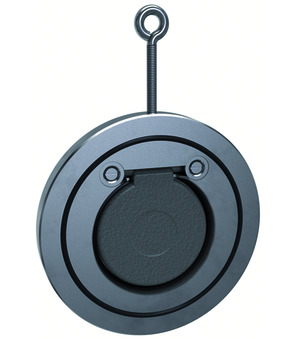

CH010-100-3CANSI150
swing check valve series CH010-3C; wafer type; reset by its own weight; body zinc plated steel; seal NBR; medium temperature -10…+120°C; DN 100mm; length 18mm; nominal flange pressure ANSI150; flap material 1.4401; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness
Intrastat No.: 84813091
Country of origin: Italy
Short Itemnumber: CH0101003CANSI150
Country of origin: Italy
Short Itemnumber: CH0101003CANSI150
swing check valve series CH010-3C; wafer type; reset by its own weight; body zinc plated steel; seal NBR; medium temperature -10…+120°C; DN 100mm; length 18mm; nominal flange pressure ANSI150; flap material 1.4401; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness
| dimension | |
|---|---|
| DN | 150 mm |
| Length | 20 mm |
| Flange | PN10/16, ANSI150 |
| materials | |
| Flap material | 1.4401 |
No spare parts are available for this product.
