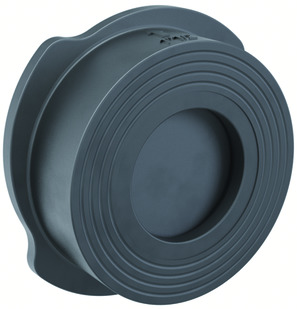

Check valve Series CH009-V; Wafer type; Body 1.4408; Disc 1.4404; Seal FKM; Medium temperature -20...200°C; DN 100mm; Length 60mm; Nominal flange pressure PN10/16/25/40, ANSI150/300
Country of origin: Italy
Weight: 3.6 Kg
Short Itemnumber: CH009100V
check valve series CH009-V; wafer type; body AISI 316; disc AISI 316L; seal FKM; medium temperature -20...200°C; DN 100mm; length 60mm; nominal flange pressure PN10/16/25/40, ANSI150/300
Technical specifications
| DN | 100 mm |
|---|---|
| Length | 60 mm |
| Flange | PN10/16/25/40, ANSI150/300 |
| DN | 100 mm |
| Length | 60 mm |
| Flange | PN10/16/25/40, ANSI150/300 |
CH009-100-V
