Way-valves - electrically / pneumatically

P-311-701-VES

3/2-way valve; Pressure range 2...10bar; Actuation Pneumatic/spring; Connection 1/4"; Function NC; Flow rate 1250Nl/min; Completely made of stainless steel 1.4404

3/2-way valve; Pilot-operated; Pressure range 0...10bar; Actuation Electrical/spring External control air 3bar; Type of coil MA22; Connector size 22mm; Connection 3/4"; Function NC; Flow rate 6000Nl/min

VFN2120N-1DZ-02F-Q

5/2-way valve; According to NAMUR; Pilot-operated; Actuation Electrical/spring; Connector size 22mm; Connection 1/4"; Pressure range 1,5-9bar; Voltage 100V/50-60Hz

MNH510121

5/2-way valve; According to NAMUR2; Pilot-operated; Actuation Electrical/internal control air; Type of coil MA22; Connector size 22mm; Temperature range -20...+50°C; Connection 1/2"; Pressure range 1-10bar; Flow rate 3000Nl/min

PS128-12-C

5/2-way valve; According to NAMUR; Pilot-operated; Actuation Electrical/internal control air; Type of coil MA22; Connector size 22mm; Temperature range -20...+50°C; Connection 1/2"; Pressure range 1-10bar; Flow rate 3000Nl/min

PV32W1S9M10A

3/2-way poppet valve; Actuation Electrical/spring; Internal control air; Pressure range 3...10bar; NO; Type of coil SCN; Connector size 32mm; Connection 1"; Nominal diameter 25mm; Flow rate 13500Nl/min

MH310701VES

3/2-way valve; Pilot-operated; Actuation Electrical/internal control air; Type of coil MA; Connector size 22mm; Connection 1/4"; Function NC; Pressure range 2-10bar; Flow rate 1250Nl/min; Material Stainless steel

VLL514

5/2-way valve; Pressure range 2...10bar; Actuation Impulse Pneumatically; Connection 1/4"; Control port 1/8"

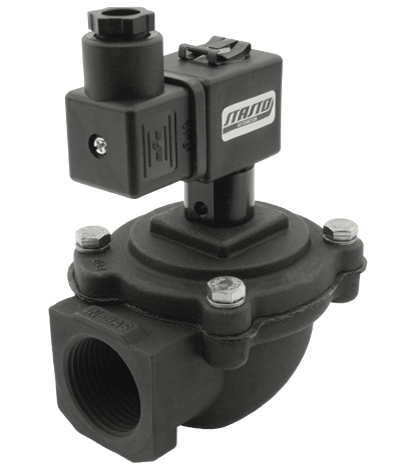

VNP212-V-SB4-24VDC

2/2-way filter diaphragm valve Series VNP; NC; Actuation Electrical/internal control air; Application: Cleaning of filter systems; Type of coil SB4; Connector size 32 mm; Diaphragm FKM; Connection 11/2"; Nominal diameter 44mm; Pressure range 0,5-7,5bar; Tension 24VDC; Number of diaphragms 2; Incl. coil and connector

PV32W1S6E10A

3/2-way solenoid valve, connection: 1" nominal size: 25 mm, actuation: electr./internal pilot air, NC external pilot air connection 1/8"

PV32W1S9E10A

3/2-way solenoid valve, connection: 1" nominal size: 25 mm, actuation: electr./internal pilot air, NO external pilot air connection 1/8"

PS125-8-18-C-MS03

3/2-way Solenoid valve unit; 8-fold; Connection: 1/8"; Nominal diameter: 1,2 mm; Actuation: Electric/spring; NC; 24VDC; Fully assembled and tested

17350

Coil ATEX; Cable length 3m; Voltage 230VAC

PV32W1S6V10V

3/2-way poppet valve; Actuation Electrical/spring; Pressure range -1...0bar; NC; Type of coil SCN; Connector size 32mm; Connection 1"; Nominal diameter 25mm; Flow rate 13500Nl/min

BE8M-202400-NC-8-4

Solenoid valve unit 8-fold#br#8x 3/2-way valve; Directly operated; Battery valve, Optional expandable; Actuation Electrical/spring 24VDC; With connector; Nominal diameter 1,2mm; Function NC; Pressure range 0-10bar; Flow rate 80Nl/min; Pressure inlet Swivel male elbow 8mm; Outlets Straight male stud fitting 4mm; Fully assembled and tested
