Manometer - Glycerin

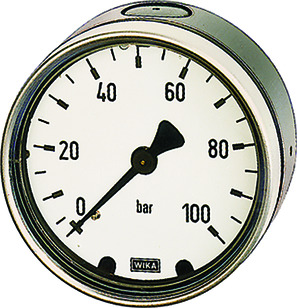

Glycerin manometer
Ø 100mm; Bourdon tube manometer; Body Brass; Front ring Stainless steel; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,0
Data sheets, CAD files and further documents are available with the respective variant.
16Articles
Store guide
All prices exclude tax.
Grundversion
| Availability | Price | Quantity | |||||
|---|---|---|---|---|---|---|---|
820
Specifications
|
100 mm | 1/2" | -1...0 | bar | 1.234,20 lei | ||
821
Specifications
|
100 mm | 1/2" | 0...1 | bar | 1.260,20 lei | ||
822
Specifications
|
100 mm | 1/2" | 0...1,6 | bar | 1.260,20 lei | ||
823
Specifications
|
100 mm | 1/2" | 0...2,5 | bar | 1.260,20 lei | ||
824
Specifications
|
100 mm | 1/2" | 0...4 | bar | 1.260,20 lei | ||
825
Specifications
|
100 mm | 1/2" | 0...6 | bar | 1.234,20 lei | ||
826
Specifications
|
100 mm | 1/2" | 0...10 | bar | 1.234,20 lei | ||
827
Specifications
|
100 mm | 1/2" | 0...16 | bar | 1.260,20 lei | ||
828
Specifications
|
100 mm | 1/2" | 0...25 | bar | 1.234,20 lei | ||
829
Specifications
|
100 mm | 1/2" | 0...40 | bar | 1.260,20 lei | ||
830
Specifications
|
100 mm | 1/2" | 0...60 | bar | 1.477,50 lei | ||
831
Specifications
|
100 mm | 1/2" | 0...100 | bar | 1.477,50 lei | ||
832
Specifications
|
100 mm | 1/2" | 0...160 | bar | 1.477,50 lei | ||
833
Specifications
|
100 mm | 1/2" | 0...250 | bar | 1.437,20 lei | ||
834
Specifications
|
100 mm | 1/2" | 0...400 | bar | 1.437,20 lei | ||
835
Specifications
|
100 mm | 1/2" | 0...600 | bar | 1.437,20 lei |
