Hoses, Tubes, Manometer and accessories

List prices MSP RO
MA049-100B-V3
manometer - industrial diaphragm type; body stainless steel AISI 304; measuring unit zinc plated steel; front glass mineral glass; ambient temperature -20...+60°C; medium temperature max. +100°C; seal NBR; connection G1/2" below; test flange diameter 100mm; class 1,6; diameter 100mm; indicating range -1...3; unit bar
TH004-109R-30050-01
bimetallic thermometer; body stainless steel AISI 304; front glass flat instrument glass; diameter 100mm; stem length 250mm; stem diameter 6mm; AISI 316Ti; connection rear; indicating range -30...+50°C
PA-8/6-GN-0100-C
plastic hose; material polyamide; multiplier for operating pressure 30°C = 0,87 / 80°C = 0,43; vacuum -0,87bar; temperature range -60...130°C; outside diameter 8mm; inside diameter 6mm; operating pressure at 23°C 20bar; colour green; packaging: c.box
AA004
nozzle; aluminum; connection 1/8" female thread
MB-AA004
mounting bracket for nozzle AA 004

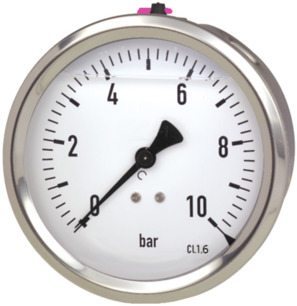

MA051-100B-10
Diaphragm pressure gauge in industrial design; Housing Stainless steel 1.4301; Measuring element Galvanised steel; Viewing window Mineral glass; Ambient temperature -20...+60°C; Medium temperature Max. +100°C; Gasket NBR; Connection G1/2" Below; Measuring flange Diameter 100mm; Class 1,6; Diameter 100mm; Display area 0-10; Unit bar; With glycerine filling
MA051-100B-16
Diaphragm pressure gauge in industrial design; Housing Stainless steel 1.4301; Measuring element Galvanised steel; Viewing window Mineral glass; Ambient temperature -20...+60°C; Medium temperature Max. +100°C; Gasket NBR; Connection G1/2" Below; Measuring flange Diameter 100mm; Class 1,6; Diameter 100mm; Display area 0-16; Unit bar; With glycerine filling
MA046-63B-60
Capsule pressure gauge; Housing Stainless steel; Measuring element, Pointer movement Stainless steel 1.4571; Viewing window Instrument flat glass; Ambient temperature -20...+60°C; Medium temperature max. +100°C; Connection below; Class 1,6; Connection 1/4"; Diameter 63mm; Display area 0...60; Unit mbar
MA036-100B-25-05
Bourdon tube pressure gauge; Housing Stainless steel; Flare ring Viewing window Acrylic glass; Ambient temperature -20...+60°C; Medium temperature max. +60°C; Connection G1/2" below; Class 1,0; Diameter 100mm; Display area 0...25; Unit bar;
incl. 2 Adjustable brand hands (max/min)

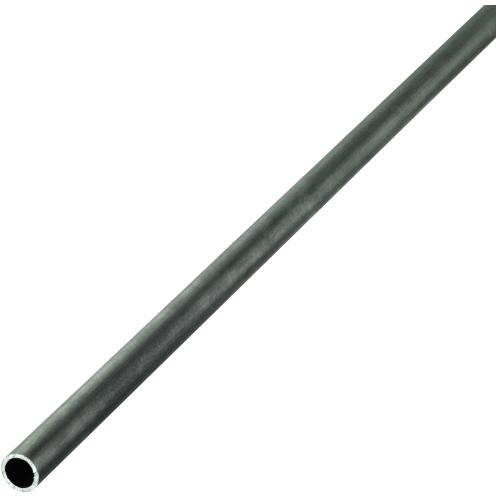

15X1-2,0
seamless steel pipe bright; according to DIN 2391/C; DIN 2445-2/DIN 1630; EN 10305-4; phosphated; eddy current approved; material St37.4; diameter tube outside 15mm; material thickness 1mm; max. operating pressure 167bar; tube length 2,0m
PA-10/8-NA-SPA-01
spiral hose; material polyamide; operating pressure at 23°C 15bar; without fittings; temperature range -40...90°C; colour natural; diameter outside 10mm; diameter inside 8mm; exit 1 axial length 100mm; exit 2axial length 1200mm; Windings 5
PA-4/2-BU-SPA-01
spiral hose; material polyamide; operating pressure at 23°C 15bar; without fittings; temperature range -40...90°C; colour blue; diameter outside 4mm; diameter inside 2mm; exit 1 axial length 100mm; exit 2axial length 1200mm; Windings 5
BJP38152
low-noise flat nozzle; aluminum; connection 3/8" female thread; nozzle width 152mm; blowing force into 150mm at 6bar 22N; air consumption at 6bar 1970Nl/min
MA124-63B-40
bourdon tube manometer-Working pressure indicator for cylinder pressure regulator; body steel brass-coloured; measuring unit, motion work copper based alloy; front glass Polycarbonat; ambient temperature -20...+60°C; medium temperature max. +60°C; inscription "oxygen"; connection 1/4" below; class 2,5; diameter 63mm; indicating range 0...40; unit bar
MA070-100B-700
manometer - digital type; diameter 100mm; body stainless steel AISI 304; measuring unit stainless steel AISI 316L; connection 1/2" below; pressure range 0...700; pressure range bar; outlet signal 4-20mA
PA-6/4-BU-2000-D
plastic hose series PA; material polyamide; multiplier for operating pressure 30°C = 0,87 / 80°C = 0,43; vacuum -0,87bar; temperature range -60...130°C; outside diameter 6mm; inside diameter 4mm; operating pressure at 23°C 28bar; colour blue
MA038-63R-10-02
glycerin manometer; bourdon tube manometer; body stainless steel; front ring stainless steel bright; measuring unit, motion work copper based alloy; front glass acryl; ambient temperature -20...+60°C; medium temperature max. +60°C; connection 1/4" rear; class 1,6; diameter 63mm; indicating range 0-10; unit bar/psi;incl. Comp-Trade customer logo;

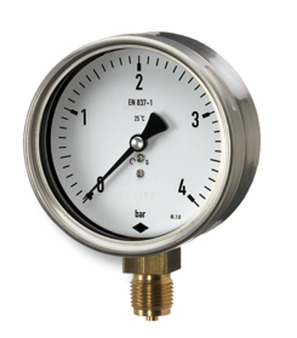

MA034-100B-1,6
manometer - chemical diaphragm type; body stainless steel AISI 303; measuring unit stainless steel AISI 316Ti; front glass flat instrument glass; ambient temperature -20...+60°C; medium temperature max. +100°C; overload 5 x value of scale, max. 40bar; seal NBR; connection below; test flange diameter 50mm; class 1,6; diameter 100mm; indicating range 0...1,6; unit bar
MA055-100R-V5
glycerin manometer; bourdon tube manometer; body stainless steel; front ring stainless steel bright; measuring unit, motion work copper based alloy; front glass acryl; ambient temperature -20...+60°C; medium temperature max. +60°C; connection 1/2" rear; class 1,0; diameter 100mm; indicating range -1...+5; unit bar
PA-8/6-02G-0100
2-fold-plastic hose with black polyurethane coating, single hoses polyamide blue-natural, temperature range -20…80°C; outside diameter: 8mm, inside diameter: 6mm; operating pressure at 23°C 20bar; multiplier for operating pressure 30°C = 0,84 / 80°C = 0,42; vacuum -0,87bar
