Hoses, Tubes, Manometer and accessories

Plastic hose; Material Polyamide; Multiplier for operating pressure 30°C = 0,87 / 80°C = 0,47; Vacuum -0,87bar; Temperature range -60...100°C; Outside diameter 16mm; Inside diameter 13mm; Operating pressure at 20°C 14bar; Colour Red; Delivered on drum

PA-6/4-BK-0500-DYA

Plastic hose; Material Polyamide; Multiplier for operating pressure 30°C = 0,87 / 80°C = 0,43; Vacuum -0,87bar; Temperature range -60...100°C; Outside diameter 6mm; Inside diameter 4mm; Operating pressure at 23°C 28bar; Colour Black; 500m Open Wooden drum

PA-8/6-BK-0500-DYA

Plastic hose; Material Polyamide; Multiplier for operating pressure 30°C = 0,87 / 80°C = 0,47; Vacuum -0,87bar; Temperature range -60...100°C; Outside diameter 8mm; Inside diameter 6mm; Operating pressure at 20°C 19bar; Colour Black

PU-10/8-NA-1-F

Plastic hose; Material Polyurethane; Outside diameter 10mm; Inside diameter 8mm; Operating pressure at 23°C 7bar; Colour Natural; Basic material FDA-approved

PA-6/4-GR-0050

Plastic hose Series PA; Material Polyamide; Multiplier for operating pressure 30°C = 0,87 / 80°C = 0,47; Vacuum -0,87bar; Temperature range -60...100°C; Outside diameter 6mm; Inside diameter 4mm; Operating pressure at 20°C 27bar; Colour grau

PT-12/10-BK-0050-S

Plastic hose, Material PTFE, Multiplier for operating pressure 100°C = 0,65 / 200°C = 0,35, Colour Black, Outside diameter 12mm, Inside diameter 10mm, Operating pressure At 23°C 10bar, Antistatic

PT-4/2-NA-0050-D

Plastic hose Series PT; Material PTFE; Multiplier for operating pressure 100°C = 0,65 / 200°C = 0,35; Temperature range -60...250°C; Colour Natural; Outside diameter 4mm; Inside diameter 2mm; Operating pressure at 23°C 35bar; Delivered on drum

12X1-1,0

Seamless steel pipe Bright; According to DIN 2391/C; DIN 2445-2/DIN 1630; EN 10305-4; Phosphated; Eddy current approved; Material St37.4; Diameter Tube Outside 12mm; Material thickness 1mm; Max. operating pressure 209bar; Tube length 1,0m

PU-6/4-BU-0100-Z01

Plastic hose Series PU; Material Polyurethane; Multiplier for operating pressure 30°C = 0,83 / 60°C = 0,47; Vacuum -0,87bar; Temperature range -40...85°C; Outside diameter 6mm; Inside diameter 4mm; Operating pressure at 23°C 9bar; Colour Blue

PU-6/4-NA-0100-Z01

CLA-SV30-12-10,5-3

Certificate TPED 2010/35/EU, Laser marking

MA066-63R-100

Bourdon tube manometer; Body Sheet steel, Front ring 3-square Chromium-plated; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Connection Rear; Class 1,6; Diameter 63mm; Indicating range 0-100bar; Connection 1/4"

TH008-109R-100-01

Bimetallic thermometer; Body Stainless steel 1.4301; Front glass Mineral glass; Measuring sensor Diameter 6mm; Stainless steel 1.4571; Connection Rear; Class 1,0; Diameter 100mm; Indicating range 0-100°C; Measuring sensor length 250mm; Protecting tube Type 09; Compression fitting; Connection Below G1/2"

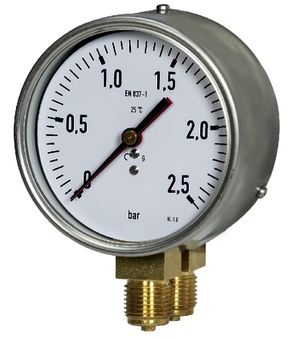

MA088-100B-25

Differential pressure manometer; Bourdon tube manometer; Body Stainless steel 1.4301; Measuring unit, Motion work Copper based alloy; Front glass Mineral glass; Ambient temperature -20...+60°C; Medium temperature Max. +60°C; Parallel connection G1/2" Below; Class 1,0; Diameter 100mm; Indicating range 0-25; Unit bar

HC09-250/270-16-U

Hose clip Series HC09; Screw flight; Zinc plated steel; Bandwidth 16mm; Clamping range 250...270mm

MA095-8014B-600

Manometer - digital type Incl. Factory calibration certificate; Diameter 80mm; Accuracy 0,5% of full pressure range; Connection 1/4" Below; Capturing pressure peaks; Battery life time cycle 1500 Hours; Seal NBR; Pressure range 0/600; Pressure range bar
