Hoses, Tubes, Manometer and accessories

Glycerin manometer with single scale bar; Bourdon tube manometer; Body Stainless steel; Front ring Stainless steel Bright; Measuring unit, Motion work Copper based alloy; Front glass Acryl; Ambient temperature -10...+60°C; Medium temperature Max. +60°C; Connection 1/4" Rear; Class 1,6; Diameter 63mm; Indicating range 0-25bar

MAU-632R-4-BIB-G

MAU-632R-60-WIS-S

Pressure gauge, safety version dia. 63 mm, pressure: 0 to 60 bar, connection 1/4" rear to EN 837-2

MAU-632R-6-WIS-GW

Glycerin manometer with single scale bar; Bourdon tube manometer; Body Stainless steel 1.4301; Measuring unit 1.4404; Connection 1.4571; Front glass Flat instrument glass; Ambient temperature -40...+60°C; Medium temperature Max. +200°C; Connection Rear; Diameter 63mm; Indicating range 0-6bar; Connection 1/4"; Class 1,6; Front flange

MAU-632R-V15-WIS

Manometer with single scale bar; Bourdon tube manometer; Body 1.4301; Measuring unit 1.4571, Motion work 1.4401; Front glass Laminated safety glass; Ambient temperature -40...+60°C; Medium temperature Max. +200°C; Connection Rear; Diameter 63mm; Indicating range -1-15bar; Connection 1/4"; Class 1,6

MAU-632R-V15-WIS-G

Manometer with single scale bar; Bourdon tube manometer; Body Stainless steel 1.4571; Measuring unit 1.4401; Motion work 1.4408; Front glass Flat instrument glass; Ambient temperature -40...+60°C; Medium temperature Max. +200°C; Connection Rear; Diameter 63mm; Indicating range -1/15bar; Connection 1/4"; Class 1,6; Glycerin

MAU-63SB-600-WIS

Manometer with single scale bar; Bourdon tube manometer; Body Stainless steel 1.4301; Measuring unit 1.4401; Front glass Flat instrument glass; Ambient temperature -40...+60°C; Medium temperature Max. +200°C; Connection Below; Diameter 63mm; Indicating range 0-600bar; Connection M12x1,5; Class 1,6

MG-160/63

Pressure gauge, glycerine dia. 63 mm, pressure: 0 to 160 bar, connection 1/4" bottom

MHA-08

Hand pressure gauge with digital display, measuring range 0-8bar, max. overpressure 10 bar housing plastic, connection hose tail 4mm

MJ4

Nozzle; Connection M4x0,5; Blowing force At 4bar 0,7N; Air consumption At 4bar 51,7Nl/min

MJ4-QS

Nozzle; Connection Push-in fitting For 4mm Tube; Blowing force At 5bar 0,9N; Air consumption At 5bar 66,7Nl/min

MJ5

Nozzle; Connection M5x0,5; Blowing force At 4bar 1,5N; Air consumption At 4bar 132Nl/min

MJ6

Nozzle; Connection M6x0,75; Blowing force At 4bar 2,1N; Air consumption At 4bar 193Nl/min

MSV01-12N-U1

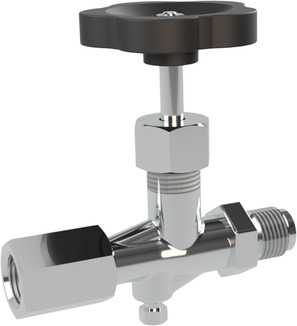

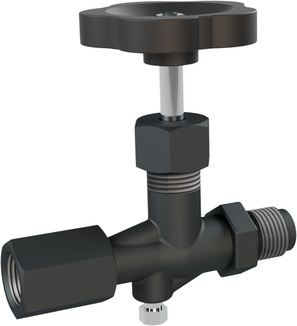

Manometer stop-valve; According to DIN 16270; Spigot/Clamping sleeve; Connection 1/2"NPT; Nominal pressure 400bar; Material Steel; Max. medium temperature 120°C; Seal Graphite

MSV01-12N-W

Manometer stop-valve; According to DIN 16270; Spigot/Clamping sleeve; Connection 1/2"NPT; Nominal pressure 400bar; Material Stainless steel AISI 316Ti; Max. medium temperature 200°C; Seal PTFE

MSV01-12-W-01

Manometer stop-valve; According to DIN 16270; Spigot/Clamping sleeve; Connection 1/2"; Nominal pressure 400bar; Material Stainless steel AISI 316Ti; Max. medium temperature 200°C; Seal PTFE; Free of oil and grease for oxygen

MSV01-12-W-3C01

MSV01-M20X1,5-W

Manometer stop-valve; According to DIN 16270; Spigot/Clamping sleeve; Connection M20x1,5; Nominal pressure 400bar; Material Stainless steel AISI 316Ti; Max. medium temperature 200°C; Seal PTFE

MSV01-M20X1,5-W-01

Manometer stop-valve; According to DIN 16270; Spigot/Clamping sleeve; Connection M20x1,5; Nominal pressure 400bar; Material Stainless steel AISI 316Ti; Max. medium temperature 200°C; Seal PTFE; Oil and grease-free for oxygen
