Compressed air safety - shut-off, blow-off, noise reduction

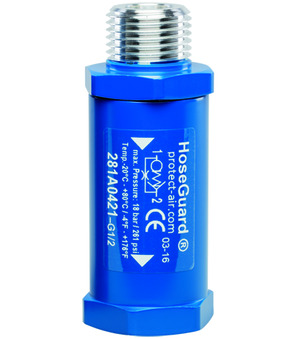

Hose burst safety valve Series HB01, HB02

Body Aluminum; Seal NBR; Pressure range 0...18bar

Data sheets, CAD files and further documents are available with the respective variant.

Other series

Fabric hose Series PV-LGN

Ball valve made of brass Series BA265

Pressure regulator Series RE18

Padlock Series VS

Filter regulator Series FR18

Maintenance unit Series MU218

Solenoid valve Series MSL18

Pneumatic shut off valve Series MSP18

Manual shut-off valve Series MBA18

Soft start valve Series MSS18

Mounting bracket

Padlock Series VS

Hose burst safety valve Series HB01, HB02

Pressure regulator fixed set Series PR29

Coupling DN 7,4

Pressure regulators for pneumatic tools Series RE30

Pressure regulators for pneumatic tools Series RE31

Blow gun Series BG01R

Blow gun Series S-23

Pressure regulators for blow guns Series PR92

Standard air-nozzle 1,5mm

Silent air-nozzle

Standard air-nozzle with protection shield

Stream nozzle

Safety and silent air nozzle

Protection shield for nozzles

Air jacket nozzle

Low-noise fine jet nozzle

Low-noise round nozzle

Low-noise flat nozzle

Ball valve made of brass Series BAA1

Choose a variant

20 Articles

All prices exclude tax.

Grundversion

					Availability	Price	Quantity
HB02-14-LF Specifications Medium temperature -20...+80 °C Closing point at 6bar 47 Nl/min Brand STASTO	1/4"	6 mm	49 mm	innen/innen	See availability	213,20 lei	Quantity Details Documents — HB02-14-LF
HB02-14 Specifications Medium temperature -20...+80 °C Closing point at 6bar 670 Nl/min Brand STASTO	1/4"	6 mm	49 mm	innen/innen	See availability	188,20 lei	Quantity Details Documents — HB02-14
HB02-14-HF Specifications Medium temperature -20...+80 °C Closing point at 6bar 900 Nl/min Brand STASTO	1/4"	6 mm	49 mm	innen/innen	See availability	251,90 lei	Quantity Details Documents — HB02-14-HF
HB01-14-LF Specifications Medium temperature -20...+80 °C Closing point at 6bar 47 Nl/min Brand STASTO	1/4"	6 mm	58,5 mm	Female/male	See availability	218,30 lei	Quantity Details Documents — HB01-14-LF
HB01-14 Specifications Medium temperature -20...+80 °C Closing point at 6bar 670 Nl/min Brand STASTO	1/4"	6 mm	58,5 mm	Female/male	See availability	193,30 lei	Quantity Details Documents — HB01-14
HB01-14-HF Specifications Medium temperature -20...+80 °C Closing point at 6bar 900 Nl/min Brand STASTO	1/4"	6 mm	58,5 mm	Female/male	See availability	259,10 lei	Quantity Details Documents — HB01-14-HF
HB02-38 Specifications Medium temperature -20...+80 °C Closing point at 6bar 930 Nl/min Brand STASTO	3/8"	10 mm	58 mm	innen/innen	See availability	248,90 lei	Quantity Details Documents — HB02-38
HB02-38-HF Specifications Medium temperature -20...+80 °C Closing point at 6bar 1290 Nl/min Brand STASTO	3/8"	10 mm	58 mm	innen/innen	See availability	333,50 lei	Quantity Details Documents — HB02-38-HF
HB01-38 Specifications Medium temperature -20...+80 °C Closing point at 6bar 930 Nl/min Brand STASTO	3/8"	10 mm	69,5 mm	Female/male	See availability	257,00 lei	Quantity Details Documents — HB01-38
HB01-38-HF Specifications Medium temperature -20...+80 °C Closing point at 6bar 1290 Nl/min Brand STASTO	3/8"	10 mm	69,5 mm	Female/male	See availability	344,20 lei	Quantity Details Documents — HB01-38-HF
HB02-12-LF Specifications Medium temperature -20...+80 °C Closing point at 6bar 2060 Nl/min Brand STASTO	1/2"	12 mm	65 mm	innen/innen	See availability	489,60 lei	Quantity Details Documents — HB02-12-LF
HB02-12 Specifications Medium temperature -20...+80 °C Closing point at 6bar 2710 Nl/min Brand STASTO	1/2"	12 mm	65 mm	innen/innen	See availability	293,20 lei	Quantity Details Documents — HB02-12
HB02-12-HF Specifications Medium temperature -20...+80 °C Closing point at 6bar 3040 Nl/min Brand STASTO	1/2"	12 mm	65 mm	innen/innen	See availability	392,70 lei	Quantity Details Documents — HB02-12-HF
HB01-12-LF Specifications Medium temperature -20...+80 °C Closing point at 6bar 2060 Nl/min Brand STASTO	1/2"	12 mm	79 mm	Female/male	See availability	511,50 lei	Quantity Details Documents — HB01-12-LF
HB01-12 Specifications Medium temperature -20...+80 °C Closing point at 6bar 2710 Nl/min Brand STASTO	1/2"	12 mm	79 mm	Female/male	See availability	301,40 lei	Quantity Details Documents — HB01-12
HB01-12-HF Specifications Medium temperature -20...+80 °C Closing point at 6bar 3040 Nl/min Brand STASTO	1/2"	12 mm	79 mm	Female/male	See availability	404,40 lei	Quantity Details Documents — HB01-12-HF
HB02-34 Specifications Medium temperature -20...+120 °C Closing point at 6bar 3600 Nl/min Brand STASTO	3/4"	19 mm	76 mm	innen/innen	See availability	634,90 lei	Quantity Details Documents — HB02-34
HB02-34-HF Specifications Medium temperature -20...+120 °C Closing point at 6bar 4570 Nl/min Brand STASTO	3/4"	19 mm	76 mm	innen/innen	See availability	662,50 lei	Quantity Details Documents — HB02-34-HF
HB02-10 Specifications Medium temperature -20...+120 °C Closing point at 6bar 4610 Nl/min Brand STASTO	1"	25 mm	100 mm	innen/innen	See availability	1.179,10 lei	Quantity Details Documents — HB02-10
HB02-20 Specifications Medium temperature -20...+120 °C Closing point at 6bar 11360 Nl/min Brand STASTO	2"	40 mm	130 mm	innen/innen	See availability	999.999,00 lei	Quantity Details Documents — HB02-20
