Valves, butterfly valves and gate valves - manually operated

List prices MSP RO
BUW6-500-DSE-B-S
Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 500mm; Length 127mm; Pressure range 0…16bar; Flange PN10/16/ANSI150; Silicone-free
BUW6-500-DSE-G-S

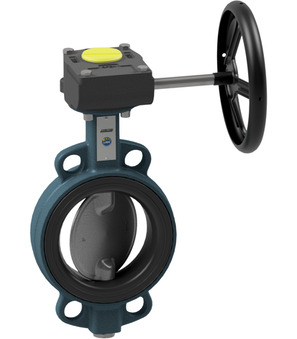

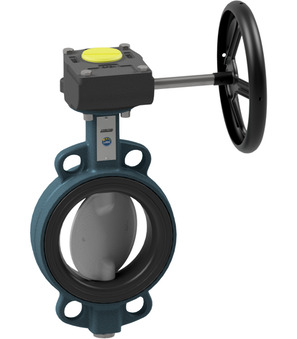

Butterfly valve with manual gear box; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 500mm; Length 127mm; Silicone-free
BUW6-500-DSX-B
Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM HT; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+150°C; Pressure range 0...16bar; DN 500mm; Length 127mm
BUW6-500-DSX-G
Butterfly valve with manual gear box; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM HT; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+150°C; Pressure range 0...16bar; DN 500mm; Length 127mm
BUW6-50-CLVS-B
Butterfly valve with bare shaft end DN50, wafer, PN10/16/A150, 0-16bar body steel, disc 1.4408 Halar-coated shaft 1.4408, sleeve FKM
BUW6-80-CLVS-B
Butterfly valve with free shaft end DN80, wafer, PN10/16/A150, 0-16bar body steel, disc 1.4408 Halar-coated shaft 1.4408, sleeve FKM
BUW7-400-DSV-B-A
Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...20bar; DN 400mm; Length 102mm; ATEX - Ex II 2GD c TX
BUWV-150-CSE-B
Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN16/25/ANSI150; Medium temperature -10...+130°C; Pressure range 0...25bar; DN 150mm; Length 56mm
BUWV-150-CSE-B-3C
Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN16/25/ANSI150; Medium temperature -10...+130°C; Pressure range 0...25bar; DN 150mm; Length 56mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
BUW9-080-CSRS-B-G
Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 80mm; Length 46mm; Nominal flange pressure PN10/16/25/ANSI150; Free of oil and grease for oxygen
BUW9-080-SSRS-B-H
Butterfly valve with bare shaft; Wafer type; Length According to EN558−1R20; Body 1.4408; Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -55...+230°C; Pressure range 0...25bar; DN 80mm; Length 46mm; Nominal flange pressure PN10/16/25/ANSI150
BUW9-080-SSRS-B-3E
Butterfly valve with bare shaft; Wafer type; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -29...+230°C; Pressure range 0...25bar; DN 80mm; Length 46mm; Nominal flange pressure PN10/16/25/ANSI150; Stem extension 100mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; Incl. notch impact test; Incl. Stem extension AISI304 110mm
BUW9-080-SSRS-B-3E01
Butterfly valve with bare shaft; Wafer type; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -29...+230°C; Pressure range 0...25bar; DN 80mm; Length 46mm; Nominal flange pressure PN10/16/25/ANSI150; Stem extension 100mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; Incl. notch impact test; Stem extension AISI304 110mm
BUW9-080-SSRS-L-H
Butterfly valve with hand lever; Wafer type; Length According to EN558−1R20; Body And Disc 1.4408, Shaft 1.4542; Seat RTFE; Nominal flange pressure PN10/16/25/ANSI150; Medium temperature -55...+230°C; Pressure range 0...25bar; DN 80mm; Length 46mm
BUW9-100-CSRS-B-A3E01
Butterfly valve with bare shaft; Wafer type; Length According to EN558−1R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -29...+230°C; Pressure range 0...25bar; ATEX II 2G/D Ex H X; DN 100mm; Length 52mm; Nominal flange pressure PN10/16/25/ANSI150; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness And Notch impact test
BUW9-100-CSUS-B
BUW9-100-SSRS-B-3E
Butterfly valve with bare shaft; Wafer type; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 100mm; Length 52mm; Nominal flange pressure PN10/16/25/ANSI150; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; Incl. notch impact test
BUW9-100-SSRS-B-3E01
Butterfly valve with bare shaft; Wafer type; Length According to EN558−1R20; Body, Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 100mm; Length 52mm; Nominal flange pressure PN10/16/25/ANSI150; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; Incl. notch impact test; Incl. Stem extension AISI304 110mm
BUW9-150-CSRS-B-G
Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Steel Epoxy coated; Disc 1.4408; Shaft 1.4542; Seat RTFE; Medium temperature -10...+230°C; Pressure range 0...25bar; DN 150mm; Length 56mm; Nominal flange pressure PN10/16/25/ANSI150; Free of oil and grease for oxygen
BUW9-150-SSIS-B-F
butterfly valve with bare shaft; wafer type; length according to EN558−1R20; housing and disc AISI 316, shaft AISI 630; seat Inconel 625; medium temperature -10...+500°C; pressure range 0...20bar; DN 150mm; length 56mm; nominal flange pressure PN10/16/25/ANSI150
