Valves, butterfly valves and gate valves - manually operated

List prices MSP RO
BUW2-150-DPE-L
Butterfly valve with hand lever Series BUW2-DPE-L; Wafer type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc Ductile iron EN-GJS-400-15 Zinc plated; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...6bar; DN 150mm; Length 56mm
BULG-100-DSN-B-A3C
Butterfly valve with bare shaft; ATEX II 2 GD Ex h X; Lug type; Length According to EN558−1R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 100mm; Length 52mm; Pressure range 0…16bar; Nominal flange pressure PN10/16; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness

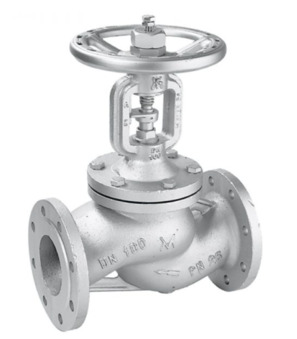

GL002-50-W
Globe valve; PN16; Body Cast iron EN-GJL-250; Seat, Cone, Stem Stainless steel 1.4021; Handwheel Steel; Packing gland Graphite; Back seal; Metal sealing; Rising stem; Body Painted RAL5005 (Blue) Thickness 50ym; Medium temperature -10...+300°C; Pressure range 0...16bar; DN 50mm; Length 230mm
BUW2-080-DSD-B
Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR DVGW-gas-approved; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+60°C; Pressure range 0...6bar; DN 80mm; Length 46mm
GB02-07/14-04
Gear box; Body Cast iron; Protection class IP67; ATEX Area 1/21; Torque 150Nm; Flange ISO5211 F07; Female square 14mm; Special version Handwheel Right;
PS-ABZ1N3HX61A-5V-150
Packing for ABZ1N3HX61A-5V-150
BUW6-050-CSE-B
Butterfly valve with bare shaft; Wafer type; Length According to EN558−1 R20; Body Carbon steel A216-WCB Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; DN 50mm; Length 43mm

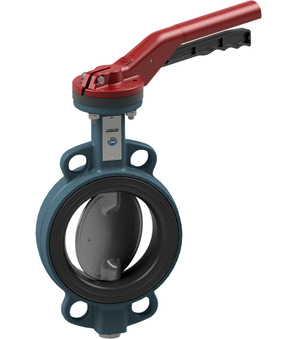

BUWV-050-DSN-L
Butterfly valve with hand lever; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner NBR; Nominal flange pressure PN16/25/ANSI150; Medium temperature -25...+100°C; Pressure range 0…25bar; DN 50mm; Length 43mm
BUW6-100-DSNS-L
Butterfly valve with hand lever; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4408; Liner NBR; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+100°C; Pressure range 0...16bar; DN 100mm; Length 52mm
110ST-1"NPT
Needle valve, female thread, body steel, seal graphite
ARIDWBGH010Q117
Padlock-Flange For Butterfly valves DN40-100; F07
GL122-20-W
Globe valve; Bellow; PN16; Body Cast iron EN-GJL-250; Seat, Cone, Stem Stainless steel 1.4021; Handwheel Steel; Packing gland Graphite; Back seal; Metal sealing; Non rising stem; Medium temperature -10...+300°C; DN 20mm; Length 150mm; Pressure range 0…16bar
BULG-100-DUN-L
Butterfly valve with hand lever; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner NBR; Medium temperature -10...+100°C; DN 100mm; Length 52mm; Pressure range 0-16bar; Nominal flange pressure 10/16bar; Disc Zinc plated steel
BULG-050-CSE-L-3C
Butterfly valve with hand lever; Lug type; Length According to EN558−1 R20; Body made of carbon steel A216-WCB; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 50mm; Length 43mm; Pressure range 0-16bar; Flange PN10/16; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
BUW6-050-DSV-L-3C
Butterfly valve with hand lever; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner FKM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+200°C; Pressure range 0...16bar; DN 50mm; Length 43mm; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness
GL127-15-W
Globe valve; PN16; Body Ductile iron EN-GJS-400-15; Seat, Cone, Stem Stainless steel 1.4021; Handwheel Steel; Bellow 1.4541; Rising stem; Medium temperature -10...+350°C; Pressure range 0...16bar; DN 15mm; Length 130mm
BULG-050-DUV-L
Butterfly valve with hand lever; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Shaft 1.4016; Liner FKM; Medium temperature -10...+200°C; DN 50mm; Length 43mm; Pressure range 0-16bar; Nominal flange pressure 10/16bar; Disc Zinc plated steel
BU149W100-G-E-DR
Butterfly valve with hand lever; Wafer type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Nominal flange pressure PN10/16/ANSI150; Medium temperature -10...+130°C; Pressure range 0...16bar; Incl. Inspection certificate EN-10204-3.1; For material, pressure and tightness; DN 100mm; Length 52mm
149H024428
Liner; Suitable for Series Sylax; Material EPDM; Nominal diameter 150mm; Pressure range 0-16bar; Medium temperature -15/+110°C
BULG-080-DSE-L-A
Butterfly valve with hand lever; Lug type; Length According to EN558−1 R20; Body Ductile iron EN-GJS-400-15 Epoxy coated; Disc 1.4408; Shaft 1.4016; Liner EPDM; Medium temperature -10...+130°C; DN 80mm; Length 46mm; Pressure range 0-16bar; Nominal flange pressure 10/16bar; ATEX
