Knife gate valves - electrically operated

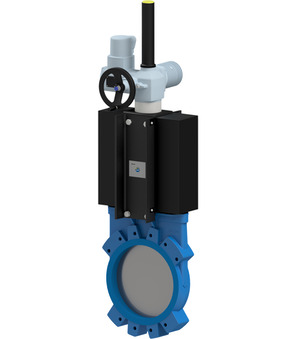

Knife gate valve with electric actuator Series A1EM2H2-5-B
Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Voltage 400V/3/50Hz; Medium temperature -5...+90°C
Data sheets, CAD files and further documents are available with the respective variant.
13Articles
Store guide
All prices exclude tax.
Grundversion
| Availability | Price | Quantity | |||||
|---|---|---|---|---|---|---|---|
| A1EM2H2-5-50-B | 50 mm | 40 mm | 0...10 bar | STASTO | 21.020,70 lei | ||
| A1EM2H2-5-65-B | 65 mm | 40 mm | 0...10 bar | STASTO | 21.125,20 lei | ||
| A1EM2H2-5-80-B | 80 mm | 50 mm | 0...10 bar | STASTO | 21.257,80 lei | ||
| A1EM2H2-5-100-B | 100 mm | 50 mm | 0...10 bar | STASTO | 21.409,80 lei | ||
| A1EM2H2-5-125-B | 125 mm | 50 mm | 0...10 bar | STASTO | 21.785,20 lei | ||
| A1EM2H2-5-150-B | 150 mm | 60 mm | 0...10 bar | STASTO | 22.089,10 lei | ||
| A1EM2H2-5-200-B | 200 mm | 60 mm | 0...7 bar | STASTO | 24.176,00 lei | ||
| A1EM2H2-5-250-B | 250 mm | 70 mm | 0...5 bar | STASTO | 25.531,60 lei | ||
| A1EM2H2-5-300-B | 300 mm | 70 mm | 0...3 bar | STASTO | 27.133,00 lei | ||
| A1EM2H2-5-350-B | 350 mm | 96 mm | 0...3 bar | STASTO | 38.544,80 lei | ||
| A1EM2H2-5-400-B | 400 mm | 100 mm | 0...5 bar | STASTO | 40.664,80 lei | ||
| A1EM2H2-5-450-B | 450 mm | 106 mm | 0...4 bar | STASTO | 42.868,00 lei | ||
| A1EM2H2-5-500-B | 500 mm | 110 mm | 0...3,5 bar | STASTO | 46.409,50 lei |
