Special armatures

List prices MSP RO
CVT-15-NC-534
2/2-way coaxial valve; Directly operated; G1/2"; 0...40bar; 220VDC; DN15; NC; Body: Stainless steel; Medium: Hydrogen +60°C; Back pressure tight; Terminal box; Manual emergency override; Incl. 2 inductive NAMUR limit switches OPEN/CLOSED (B.); Special seals; Vacuum leak test with certificate; Inspection certificate 3.1; Material certificate; ATEX/IECEx Ex II 2G Ex eb mb IIC T3 Gb / II 2D Ex mb tb IIIC T185°C Db; And Ex II 2G Ex h IIC T3 Gb / II 2D Ex h IIIC T185°C Db; Special version
CVT-15-NC-535
2/2-way coaxial valve; Directly operated; G1/2"; 0...40bar; 220VDC; DN15; NC; Body: Stainless steel; Medium: Hydrogen +60°C; Back pressure tight; Terminal box; Manual emergency override; Incl. 2 inductive NAMUR limit switches OPEN/CLOSED (I.); Special seals; Vacuum leak test with certificate; Inspection certificate 3.1; Material certificate; ATEX/IECEx Ex II 2G Ex eb mb IIC T3 Gb / II 2D Ex mb tb IIIC T185°C Db; And Ex II 2G Ex h IIC T3 Gb / II 2D Ex h IIIC T185°C Db; Special version
SK-CVTE3-P-15-NC-019
Seal kit for CVTE3-P-15-NC-019
CVTE-20-NC-047
2/2-way coaxial valve; Externally controlled; G 3/4"; 0...63bar; DN20; NC; Body: Aluminum; Medium: Water; Incl. mounting bracket; Special version
CVRHB1-P-15-001
2/2-way Pressure regulating valve; G1"; 1…16bar; DN15; Manually Externally controlled; Body: Zinc plated steel; Medium Emulsion/Oil; Incl. 3/2-way pilot valve; 24VDC; Connector DESINA M12x1; Special version
SK-CVTM-P-8-NC-001
Seal kit for CVTM-P-8-NC-001
CVT-20-NC-243
2/2-way coaxial valve; Directly operated; G1"; 0…40bar; 24VDC; DN20; NC; Body: Brass; Medium: Oxygen; Special seals; Free of oil and grease; Special version
CVCS1-15-N0-001
Coax-2/2-way cartridge valve; Externally controlled; 0...200bar; DN15; NO; Medium: Water; Special version
CVTEH-P-10-NC-004
2/2-way coaxial valve; Externally controlled; G3/8"; 0…200bar; 24VDC; DN10; NC; Body: Brass; Medium: Helium/Air; Incl. 5/2-way pilot valve; Incl. LED; Incl. certificate for vacuum; Prepared for 2 limit switches M12x1; Special version
CVTEH-P-10-N0-002
2/2-way coaxial valve; Externally controlled; G3/8"; 0…200bar; 24VDC; DN10; NO; Body: Brass; Medium: Helium/Air; Incl. 5/2-way pilot valve; Incl. LED; Incl. certificate for vacuum; Prepared for 2 limit switches M12x1; Special version
CVT-10-NC-576
2/2-way coaxial valve; Directly operated; G1/2"; 0...40bar; 24VDC; DN10; NC; Body: Brass; Medium Fuel JP-10; Temperature range -30°C...+110°C Special seals; Terminal box; Special version
CV9TE-10-NC-001
9-fold-Module block Consists of 7 Pieces 2/2-way coaxial valve CVMTE-10-NC-005 And 2 Pieces 2/2-way coaxial valve CVMTE-10-NC-012; G 3/8"; Externally controlled; Body: Brass; Medium: Helium/Nitrogen/Vacuum; 0…63bar; DN10; Incl. certificate for vacuum; Material Module: Aluminum; Connection G1"; Special version

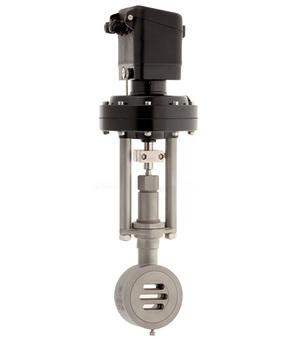

SG09-50-WWC1253-04
Control valve Type SG09, DN50; PN10/40; NO; Material: 1.4571/1.4581; Fixed disc 1.4571 Coated; Sliding disc Carbon material; Kvs-value 19 (100%); Characteristic Equal percentage; Diaphragm actuator 125cm²; Digital positioner; 4-wire; 4-20mA; Version for gaseous hydrogen; Feedback module with 2 integrated limit indicators
CVT-25-NC-185
2/2-way coaxial valve; Directly operated; G1"; 0...100bar; 24VDC; DN25; NC; Body: Brass; Medium: Emulsion; Special version
CV-H2...
Coaxial valves For hydrogen Series CV...
CVF-25-N0-020
2/2-way coaxial valve; Directly operated; Flange ANSI-RF 150 lb; DN25, 0...16bar; 24VDC; NO; Body: Stainless steel; Medium: Oil mist/Air/Hydrogen 70°C; Terminal box; Special seals; Incl. inspection certificate 3.1; Incl. material certificate; Certificate CSA/UL; Class I & II, Div. 2 And Class III, Div. 1 & 2; ATEX Ex II 3G Ex ec IIC T3 Ta -20…+80°C Gc / II 3D Ex tc IIIC T195°C Ta -20…+80°C Dc And Ex II 3G Ex h IIC T3 Gc / II 3D Ex h IIIC T195°C Dc; Special version
CV1TE-P-10-NC-012
1-fold-Module block Consists of 1 Pieces CVMTE-P-10-NC-032; 2/2-way coaxial valve; Externally controlled; G3/8"; 0...63bar; 24VDC, DN10; NC; Body: Aluminum; Medium: Emulsion/Oil; Incl. 5/2-way pilot valve; Coil with connection M12x1 VDMA; Mounting holes; Quantity control; Special version
CVRHB2-P-32-003
Coax-Control valve; Externally controlled; G11/2"; 24VDC; DN32; Body: Zinc plated steel; Medium: Emulsion/Oil; Maximum inlet pressure 63bar; Operating pressure range 5...63bar; Incl. 3/2-way pilot valve; Manual emergency override; Pressure gauge with segment arcs; Mark CE0036; Coil M12X1 VDMA; ; Special version
CVT-10-NC-578
2/2-way coaxial valve; Directly operated; G3/8"; 0...16bar; 24VDC; DN10; NC; Body: Stainless steel; Medium: Nitrogen/Argon 120°C; Incl. LED; Special seals; Special version
CVTE-15-NC-065
2/2-way coaxial valve; Externally controlled; G3/4"; 0…40bar; DN15; NC; Body: Nickel plated brass; Medium: Ceramic mud; Special seals; Flushing hole; Grease nipple; Incl. mounting bracket; Special version
