Special armatures

List prices MSP RO
CS-CVTE-25-NC-003
compression spring for CVTE-25-NC-003
BS08-25-T-B-03
ball sector valve; wafer type; DN25; PN40; body AISI 316/AISI 316L; ball sector AISI 316 hard chrome plated/lapped surface; seat ring PTFE; seals made of FKM; KVS 3,6 (16%); characteristic equal percentage medium temperature -15...+200°C; DIN/ISO5211 F05- SW14
BS08-25-T-D0-03
ball sector valve; wafer type; DN25; PN40; body AISI 316/AISI 316L; ball sector AISI 316 hard chrome plated/lapped surface; seat ring PTFE; seals made of FKM; KVS 3,6 (16%); characteristic equal percentage medium temperature -15...+200°C; incl. pneumatic actuator double acting PAD063
BS08-25-T-D0-03-EP0S11ZZZ-EX
BS08-25-T-D0-03
ball sector valve; wafer type; DN25; PN40; body AISI 316/AISI 316L; ball sector AISI 316 hard chrome plated/lapped surface; seat ring PTFE; seals made of FKM; KVS 3,6 (16%); characteristic equal percentage medium temperature -15...+200°C; incl. pneumatic actuator double acting PAD063
EP0S11ZZZ-EX
mounted positioner; digital I/P-positioner, 4-20mA; II2G Ex ia IIC T6/T4 Gb; area 1; actuator PAD052-270
CVTB-2-NC-034

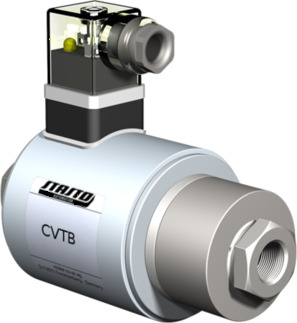

2/2-way coaxial valve; directly operated; G3/8"; 0…400bar; 24VDC; DN2; NC; body: AISI 316L/steel nickel plated; medium: hydrogen gaseous +80°C; terminal box; Vacuum leak test with certificate; Special material for low temperatures; special version
ABS56-C001-03-C002-31-LV-2
ABS56
mounted pilot valve; speed control; suitable for 2/2-way coaxial valve and 3/2-way-coaxial valve; externally controlled; DN15...DN50; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR)
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
connector; connector size 22mm; with integrated LED-yellow and VDR; voltage 24VAC/DC
SEC17-T25-ZP2506
aseptic control valve; angle type; NC; material: AISI 316L polished RA<0,6µm, control cone PEEK; diaphragm EPDM/PTFE; Tri-clamp according to inch; DN 25mm; kvs-value 3,3 (40%), characteristic linear, actuator diameter 250mm; medium temperature -20...+140°C; operating pressure 0...10bar; digital positioner; 4-wire; 4-20mA; position indicator 4-20mA; EHEDG certificate; ATEX II 2G Ex ia IIC T4 Gb, IP 65
CVT-10-N0-124
2/2-way coaxial valve; directly operated; G1/2"; 0...16bar; 24VDC; DN10; NO; body: brass; medium: Coolant; incl. LED; special version
SK-CVT-10-N0-124
seal kit for CVT-10-N0-124
CVTE-P-15-NC-079
2/2-way coaxial valve; externally controlled; 3/4"NPT; 0...40bar; 24VDC, DN15; NC; body: stainless steel: medium hydrogen; incl. 5/2-way pilot valve Ex; back pressure tight; special seals; incl. 2 inductive NAMUR limit switches OPEN/CLOSED; inspection certificate 3.1; special valve testing; ATEX Ex II 2G Ex h IIC T-20°C…+70°C Gb; Ex II 2D Ex h IIIC T-20°C…+70°C Db; IECEx EPS 23.0010X; type plate VA; special version
CVTEH-P-15-NC-009
2/2-way coaxial valve; externally controlled; 3/4"NPT; 0...200bar; 24VDC, DN15; NC; body:stainless steel: medium hydrogen; incl. 5/2-way pilot valve Ex; back pressure tight; special seals; incl. 2 inductive NAMUR limit switches OPEN/CLOSED; inspection certificate 3.1; special valve testing; ATEX Ex II 2G Ex h IIC T-20°C…+70°C Gb; Ex II 2D Ex h IIIC T-20°C…+70°C Db; special version
CVTE-P-15-NC-080
2/2-way coaxial valve; Externally controlled; 3/4"NPT; 0...40bar; 24VDC, DN15; NC; Body: Stainless steel: Medium Nitrogen/Hydrogen; Incl. 5/2-way pilot valve Ex; Back pressure tight; Special seals; Incl. 2 inductive NAMUR limit switches OPEN/CLOSED; Inspection certificate 3.1; Special valve testing; ATEX Ex II 2G Ex h IIC T-20°C…+70°C Gb; Ex II 2D Ex h IIIC T-20°C…+70°C Db; IECEx EPS 23.0010X; Type plate VA; Special version
CVTE-P-15-NC-081
2/2-way coaxial valve; externally controlled; 3/4"NPT; 0...40bar; 24VDC, DN15; NC; body: stainless steel: medium nitrogen/hydrogen; incl. 5/2-way pilot valve Ex; back pressure tight; special seals; incl. 2 inductive NAMUR limit switches OPEN/CLOSED; inspection certificate 3.1; special valve testing; ATEX Ex II 2G Ex h IIC T-20°C…+70°C Gb; Ex II 2D Ex h IIIC T-20°C…+70°C Db; special version
CVT-15-NC-504
2/2-way coaxial valve; directly operated; G1/2"; 0...16bar; 110VAC; DN15; NC; body: brass; medium: honing oil; incl. LED; special version
CVT-32-NC-045
2/2-way coaxial valve; G11/2"; 0...16bar; 24VDC; DN32; NC; directly operated; body: brass; medium: Hardening oil; mounting bracket; special version
C0-CVT-10-NC-488
coil for CVT-10-NC-488
43182
Cone knob for manual override
SK-CVTE-15-NC-013
seal kit for CVTE-15-NC-013
CVTE-25-NC-041
2/2-way coaxial valve; G1"; 0...16bar; DN25; NC; externally controlled; body: brass; medium: honing oil; special version
CVTE-P-25-NC-051
CVTE-25-NC-041
2/2-way coaxial valve; G1"; 0...16bar; DN25; NC; externally controlled; body: brass; medium: honing oil; special version
ABS56
mounted pilot valve; speed control; suitable for 2/2-way coaxial valve and 3/2-way-coaxial valve; externally controlled; DN15...DN50; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR)
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-LV-2
connector; connector size 22mm; with integrated LED-yellow and VDR; voltage 24VAC/DC
