Special armatures

PV-CVMTE-P-10-NC-001

pilot valve for CVMTE-P-10-NC-001; with exhaust throttle; coil 24VDC; without connector

3-fold-module block consists of 3 pieces CVMTE-P-10-NC-001; G3/4"; 0...80bar; 24VDC, DN10; NC; externally controlled; body: brass; medium: emulsion; incl. 5/2-way pilot valve; incl. end plate; special version

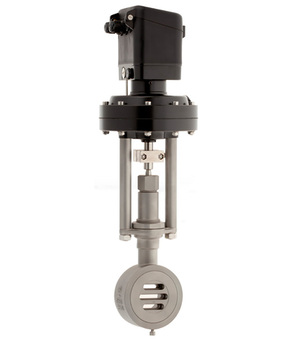

SG07-25-UWC1253-04

control valve type SG07, DN25; PN10/40; NC; material: zinc plated steel; fixed disc AISI 316Ti coated; sliding disc carbon material; kvs-value 5 (100%); characteristic equal percentage; diaphragm actuator 125cm²; digital positioner; 4-wire; control signal 4-20mA; ATEX zone 1 II 2G Ex ia IIC T4 Gb; with earthing connection

SG07-50-UWC1253-10

control valve type SG07, DN50; PN10/40; NC; material: zinc plated steel; fixed disc AISI 316Ti coated; sliding disc carbon material; kvs-value 19 (100%); characteristic equal percentage; diaphragm actuator 125cm²; digital positioner; 4-wire; control signal 4-20mA; ATEX zone 1 II 2G Ex ia IIC T4 Gb; with earthing connection

CVT-20-NC-219

2/2-way coaxial valve; directly operated; G1"; 0...16bar; 230VAC; DN20; NC; body: brass; medium: diesel; special seals; special version; back pressure tight

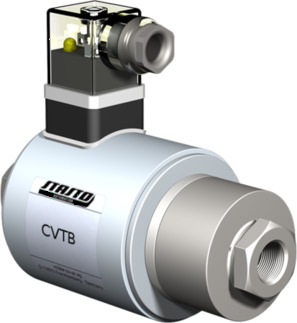

CVTB-3-NC-045

2/2-way high pressure valve; G1/4"; 0…250bar; 230VAC; DN3; NC; directly operated; body: AISI 430F/steel nickel plated; medium: nitrogen; special version

CVTB-4-NC-011

2/2-way coaxial valve; directly operated; G1/4"; 0…120bar; 230VAC; DN4; NC; body: stainless steel/steel nickel plated; medium: hydrogen; special seals; incl. certificate for vacuum; ATEX II 3G Ex ec IIC T3 Ta -20…+80°C Gc; II 3D Ex tc IIIC T195°C Ta -20…+80°C Dc and II 3G Ex h IIC T3 Gc; II 3D Ex h IIIC T195°C Dc; special version

CVTB-5-NC-009

2/2-way coaxial valve; directly operated; G1/4"; 0…80bar; 230VAC; DN5; NC; body: AISI 430F/steel nickel plated; medium: carbon dioxide; ATEX II 3G Ex ec IIC T3 Ta -20…+80°C Gc; II 3D Ex tc IIIC T195°C Ta -20…+80°C Dc and II 3G Ex h IIC T3 Gc; II 3D Ex h IIIC T195°C Dc; special version

CVFE-P-50-NC-008

2/2-way coaxial valve; externally controlled; flange DN50; PN63; 0...63bar; 24VDC; NC; body: steel nickel plated; medium: condensate 80°C; incl. 5/2-way pilot valve; incl. LED; special seals; incl. 2 inductive limit switches OPEN/CLOSED; incl. inspection certificate 3.1; special version

SG21-200-UWCECA-01

control valve type SG21, DN200; PN25; material: carbon steel; fixed disc AISI 316Ti coated; sliding disc carbon material; kvs-value 560 (100%); characteristic linear; electric control actuator 24VAC/DC; control signal and position feedback 4-20mA; 2 limit switch

CVTE-10-NC-062

2/2-way coaxial valve; Externally controlled; G1/4"; 0...16bar; DN10; NC; Body: Brass; Medium: Air; Special version

CVMTE-P-15-NC-020

2/2-way coaxial valve; externally controlled; G3/4"; 0...16bar; DN15; 24VDC; NC; body: brass; medium: emulsion; incl. 5/2-way pilot valve; coil with connection M12x1-VDMA; incl. adapter plate; valve with connection for mounting on a module; special version

CVTE-P-40-NC-004

2/2-way coaxial valve; externally controlled; G11/2"; 0...63bar; 24VDC, DN40; NC; body: zinc plated steel; medium: emulsion/oil; incl. 5/2-way pilot valve; coil with connection M12x1-VDMA; incl. mounting bracket; special version

CVMTE-P-20-NC-006

2/2-way coaxial valve; externally controlled; G1"; 0...16bar; 24VDC; DN20; NC; body: brass; medium: emulsion; incl. 5/2-way pilot valve; coil with connection M12x1-VDMA; valve with connection for mounting on a module; special version

CVT-15-NC-487

2/2-way coaxial valve; directly operated; G1/2"; 0...40bar; 24VDC; DN15; NC; body: brass; medium: emulsion; coil with connection M12x1-VDMA; special version

CVMTC-8-N0-001

2/2-way coaxial valve; externally controlled; G3/8"; 0…40bar; DN8; NO; body: brass; medium: helium/nitrogen/vacuum; valve with connection for mounting on a module; special version

CV6TC-8-NC/N0-001

6-fold-module block consists of 5 pieces CVMTC-8-NC-001; 1 pieces CVMTC-8-N0-001; externally controlled; G3/8"; 0...40bar; DN8; body: brass; medium: helium/nitrogen/vacuum; Vacuum leak test with certificate; with additional thread in the end cap; special version

CVT-20-NC-220

2/2-way coaxial valve; directly operated; G1"; 0...16bar; 24VDC; DN20; NC; body: brass; medium: coolant; terminal box; special version

CVT-15-NC-488

2/2-way coaxial valve; directly operated; G1/2"; 0...16bar; 24VDC; DN15; NC; body: brass; medium: coolant 50°C; terminal box; special version
