Special armatures

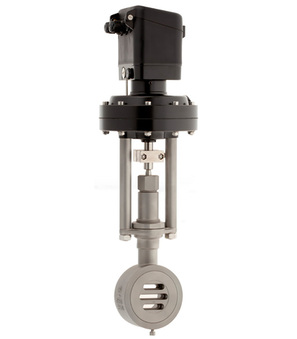

Flange-control valve; NC; Material: 1.4408, Seal PTFE; Flange PN40; DN 50mm; Kvs-value 33,5 (100%), Characteristic linear, Actuator diameter 125mm; Medium temperature -30...+170°C; Length 230mm; Operating pressure 0-9bar; Digital positioner; 4-wire; 4-20mA; Position indicator 4-20mA; 2 Limit switch 24VAC/DC, Max. 70mA

CVF-25-NC-101

2/2-way coaxial valve; Directly operated; Flange DN25 PN16; 0...16bar; 230VAC; DN25; NC; Body: Steel nickel plated; Medium: Air 25°C; Incl. 2 inductive limit switches (B); Incl. inspection certificate 3.1; Special version

CVF-15-NC-059

2/2-way coaxial valve; Directly operated; Flange DN15 PN16; 0...16bar; 230VAC; NC; Body: Steel nickel plated; Medium: Compressed air 25°C; Incl. 2 inductive limit switches (B); Incl. inspection certificate 3.1; Special version

CVF-50-N0-023

2/2-way coaxial valve; Directly operated; Flange ANSI-RF 150 lb; DN50; 0...16bar; 24VDC; NO; Body: Stainless steel; Medium: Hydrogen 80°C; Terminal box; Back pressure tight; Special seals; Incl. mounting bracket; Vacuum-test with certificate; Incl. 2 limit switches OPEN/CLOSED EuroSwitch; CE-Marking; Incl. inspection certificate 3.1; Incl. material certificate; Class 1, Div. 2; CSA/UL; Category SEP; ATEX CE Ex ec II T3 / CE Ex tc IIIC T195°C; Ex II 3G Ex h IIC T3 Gc; Ex II 3D Ex h IIIC T195°C Dc; Special version

CVT-10-NC-496

2/2-way coaxial valve; Directly operated; G1/2"; 0...16bar; 24VDC; DN10; NC; Body: Stainless steel; Medium: Extinguishing foam; Illuminated plug; Special seals; Special version

CVT-20-NC-212

2/2-way coaxial valve; G1"; 0...16bar; 24VDC; DN20; NC; Directly operated; Body: Stainless steel; Medium: Extinguishing foam; Special seals; Illuminated plug Special version

CVT-20-NC-213

2/2-way coaxial valve; Directly operated; G1"; 0...16bar; 24VDC; DN20; NC; Body: Brass; Medium: Dirty water; Incl. LED; Special seals; Special version

SG07-25-UWC1254-01

Control valve Type SG07, DN25; PN10/40; NC; Body: Carbon steel; Fixed disc 1.4571; Sliding disc Carbon material; Kvs-value 0,26 (2,5%); Characteristic Linear; Diaphragm actuator 125cm²; Digital positioner; 4-wire; Control signal 4-10mA; split range-Adjustment according to specification

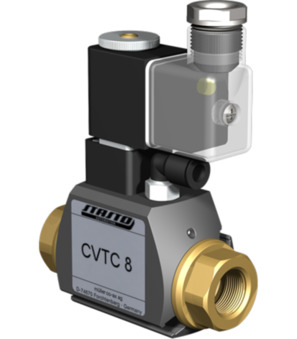

CVTC-P-8-NC-021

2/2-way coaxial valve; Externally controlled; G3/8"; 0…40bar; 24VDC, DN8; NC; Body: Brass; Medium: EmulsionOil; Incl. 3/2-way pilot valve;Throttle; Without connector; Special version

CVT-10-NC-497

2/2-way coaxial valve; Directly operated; G3/8"; 0...16bar; 24VDC; DN10; NC; Body: Brass; Medium: Emulsion/Oil; Special seals; Connector M12X1-VDMA; Special version

CVCD-P-10-N0-008

Coax-2/2-way cartridge valve; Externally controlled; G3/8"; 0…250bar; 24VDC, DN10; NO; Body: Brass; Medium: Air; Incl. 5/2-way pilot valve; Incl. LED; Special version

CVFF-P-65-NC-003

2/2-way coaxial valve; Externally controlled; Flange DN65; PN40; 0...40bar; 24VDC; NC; Body: Aluminum; Medium: Helium/Nitrogen; Incl. 5/2-way pilot valve; Coil with connection M12x1-VDMA; Incl. 2 inductive limit switches OPEN/CLOSED (B).; CE-Mark; Vacuum leak test With Certificate; Special seals; Special version

CVMTE-P-10-NC-030

2/2-way coaxial valve; Externally controlled; G1/2"; 0...16bar; 24VDC, DN10; NC; Body: Brass; Medium: Emulsion/Oil; Incl. 5/2-way pilot valve; Coil with connection M12x1; Special version; Valve with connection for mounting on a module; Special version

CV0T-10-NC-001

1-fold-Module block Consists of 0 Pieces CVMT-10-NC-XXX; Connection Module block 1"; Medium: Emulsion/Oil; Incl. End plate; Special version

CVT-10-NC-498

2/2-way coaxial valve; G1/2"; 0...40bar; 24VDC; DN10; NC; Directly operated; Body: Brass; Medium: Hydrogen; Special seals; Terminal box; Vacuum leak test with certificate; ATEX II 3G Ex ec IIC T3 Ta -20…+80°C Gc / II 3D Ex tc IIIC T195°C Ta -20…+80°C Dc And II 3G Ex h IIC T3 Gc / II 3D Ex h IIIC T195°C Dc; Special version

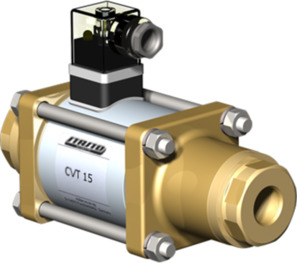

CVT-15-NC-479

2/2-way coaxial valve; G1/2"; 0…40bar; 24VDC; DN15; NC; Directly operated; Body: Brass; Medium: Oxygen; Special seals; Terminal box; Free of oil and grease; ATEX II 3G Ex ec IIC T3 Ta -20…+80°C Gc / II 3D Ex tc IIIC T195°C Ta -20…+80°C Dc And II 3G Ex h IIC T3 Gc / II 3D Ex h IIIC T195°C Dc; Special version

CVT-15-NC-480

2/2-way coaxial valve; Directly operated; G3/4"; 0…16bar; 24VDC; DN15; NC; Body: Brass; Medium: Lubricating oil 120°C; Special seals; Mounting bracket; Incl. LED; Special version

SEC03-50-ST1253-02

Flange-control valve; DN50; PN40; NC; Material: 1.4408, Seal PTFE; Kvs-value 33,5 (100%), Characteristic linear, Actuator diameter 125mm; Medium temperature -30...+170°C; Length 310mm; Digital positioner; 4-wire; 4-20mA; Position indicator 4-20mA
