Special armatures

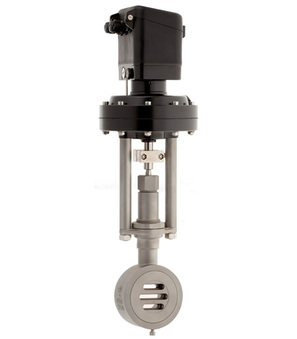

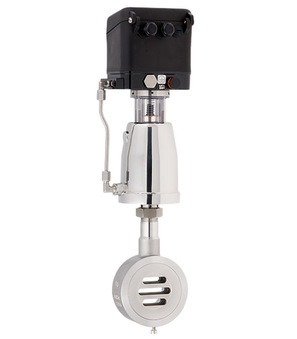

Control valve Type SG07, DN100; PN10/40; NC; Material: Zinc plated steel; Fixed disc STN2; Sliding disc STN2/STN3; Kvs-value 154 (100%); Characteristic Linear; Diaphragm actuator 125cm²; Digital positioner; 4-wire; 4-20mA; Feedback module 4-20mA

SG07-100-UWF1253-03

Control valve Type SG07, DN100; PN10/40; NC; Material: Zinc plated steel; Fixed disc 1.4571 Coated; Sliding disc SFC; Kvs-value 77 (100%); Characteristic Equal percentage; Diaphragm actuator 125cm²; Digital positioner; 4-wire; 4-20mA

SG07-100-UWN2503-02

Control valve Type SG07, DN100; PN10/40; NC; Material: Carbon steel; Fixed disc STN2; Sliding disc STN2/STN3; Kvs-value 154 (100%); Characteristic Linear; Diaphragm actuator 250cm²; Digital positioner; 4-wire; 4-20mA

SG07-100-UWN2503-03

Control valve Type SG07; DN100; PN10/40; NC; Material: Zinc plated steel, Fixed disc STN2; Sliding disc STN2/STN3; Kvs-value 154 (100%), Characteristic linear; Actuator diameter 250mm; Digital positioner; 4-wire; 4-20mA

SG07-100-UWN2503-01

Control valve Type SG07, DN100; PN10/40; NC; Material: Carbon steel; Fixed disc STN2; Sliding disc STN2/STN3; Kvs-value 95 (63%); Characteristic Linear; Diaphragm actuator 250cm²; Digital positioner; 4-wire; 4-20mA

SG07-80-WWC1253-05

Control valve Type SG07, DN80; PN10/40; NC; Material: 1.4408; Fixed disc 1.4571 Coated; Sliding disc Carbon material; Kvs-value 92 (100%); Characteristic Linear; Diaphragm actuator 125cm²; Digital positioner; 2-wire; 4-20mA; Incl. Earthing connection; ATEX II 2G Ex ia IIC T4 Gb

5-VSVF100DR-N0-523359

3/2-way coaxial valve, DN100, PN16 0-16 bar, 24VDC, NO, pilot-operated body: nickel-plated steel, medium: lubricating oil 50°C incl. 5/2-way pilot valve, LED

8050-GS1-4008147

150VB00-5 GS-1 control valve, type 8050 DN150, PN40, body steel galvanised, sliding pair special carbon/stainless steel, with manual actuator, max. differential pressure 16bar

8020-GS1-100-4007082

100VP0113 GS1 control valve, 8020, wafer type, NO DN100, PN10/40, body 1.4571/1.4581, sliding pair standard, KV 154 (100%), characteristic linear, actuator 125 cm²

BS08-100-T-S0-01

Ball sector valve; Wafer type; DN100; PN25; Body 1.4408/1.4404; Ball sector 1.4408 Hard chrome plated/Lapped surface; Seat ring Stellite; Seals PTFE/FKM; KVS 390 (100%); Medium temperature -15...+200°C; Incl. Pneumatic actuator Single acting PAS1605

SG07-125-UWF1254-01

Control valve Type SG07; DN125; PN10/40; NC; Material: Zinc plated steel; Fixed disc 1.4571 Coated; Sliding disc SFC; Kvs-value 237 (100%); Characteristic Linear; Diaphragm actuator 125cm², Spring configuration 4 (8 Springs); P/P-positioner 0.2-1bar

SG17-80-WWF2/5-01

Sliding gate-pressure regulator; Controlled by own medium; Nominal pressure PN10/40; Wafer type; Material Stainless steel 1.4408; Diaphragm EPDM; Fixed disc Stainless steel AISI 316Ti coated; Sliding disc SFC; Nominal diameter 80mm; Kvs-value 48 (100%); Characteristic equal percentage; Pressure range 2...5bar; Length 70mm; Incl. equalizing tank

SG27-15-WWCE03-01

Sliding gate valve with electrical actuator Type SG27; DN15; PN10/40; Body: 1.4571, Fixed disc Stainless steel AISI 316Ti Coated; Sliding disc Carbon material; Kvs-value 1,7 (100%); Characteristic <font style='color: #FF0000;'>#!!! Attention, Error with spaces at start or end!!!# gleichprozentig</font>; 24...230VAC/DC; Incl. Heating; Actuator AUF/ZU; 3-point control; 2 Inductive position indicator; II 2G Ex de [ia] IIC T6/T5 And II 2D Ex tD [iaD] A21 IP66 T80°C

SG07-80-WWN1253-02

Control valve Type SG07, DN80; PN10/40; NC; Material: 1.4408; Fixed disc STN2; Sliding disc STN2/STN3; Kvs-value 58 (63%); Characteristic Linear; Diaphragm actuator 125cm²; Mounted I/P-positioner SIPART PS2; Input signal 4-20mA

8044-GS1-080-4067908

080VE0111M--91--ZC-S7 GS control valve, DN80, PN10/40, N0 body stainless steel 1.4571/1.4581, sliding pair STN2 KVS=92 (100%), linear, incl. digital positioner 8049, 4 wire, 0-10V

SG06-80-WWN80-01

Control valve Type SG06; DN80; PN10/40; NC; Material: 1.4408 Respectively 1.4408/1.4401, Fixed disc STN2; Sliding disc STN2/STN3; Kvs-value 92 (100%), Characteristic linear, Actuator diameter 80mm; Digital positioner; 4-wire; 4-20mA

CVFE-P-50-NC-006

2/2-way coaxial valve; Externally controlled; Flange DN50; PN100; 0...100bar; 24VDC, DN50; NC; Body: Stainless steel; Medium: Hydrogen; Special seals; Incl. 5/2-way pilot valve; ATEX Ex II 2G Ex h IIC T -20°C...+70°C Gb / II 2D Ex h IIIC T -20°C...+70°C Db And II 2G Ex mb IIC T5 Gb / II 2D Ex mb tb IIIC T95°C Db; Incl. 2 inductive NAMUR limit switches OPEN/CLOSED (B.); Special version

SG07-80-WWC1253-01

8021-GS1-125-4045236

125VG0104M----1-ZD GS control valve with diaphragm actuator (short face-to-face) GS1 wafer design DN125, PN10-PN40 body material: 1.4571 or 1.4581 fail-safe position: spring closes, actuator: d=250cm2 characteristic linear, kvs value 95 (reduced to 40%) with mounted digital positioner type 8048, 4-20mA

8021-GS1-125-4046521

125VG0003M------ZC GS control valve with diaphragm actuator (short face-to-face) GS1 wafer design DN125, PN10-PN40 body material: carbon steel 1.0570 fail-safe position: spring closes actuator: diaphragm d=125cm2 sliding disc (movabl
