Special armatures

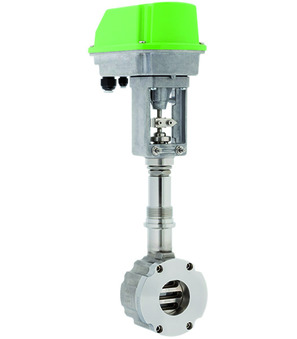

Control valve with electrical actuator Type SG08; DN25; PN10/40; Body: Stainless steel AISI 316, Fixed disc STN2; Sliding disc STN2/STN3; Kvs-value 11 (100%); Characteristic linear; Safety position NC; Voltage 24V AC/DC; Control actuator CA24C; Setpoint value input 4-20mA; Position feedback 4-20 mA; 2 Limit switch; Operating time 12,5s

SG08-40-UTEC1

Control valve Type SG08, DN40; PN10/40; NC; Material: Carbon steel; Fixed disc 1.4571 Coated; Sliding disc Carbon material; Kvs-value 11 (100%); Characteristic Linear; Control actuator BM250C/IOS2; 85-250V AC/120-250V DC; Position electronics 4-20mA; Feedback 4-20mA; 2 Limit switch

CVT-25-N0-007

2/2-way coaxial valve; Directly operated; G1"; 0...16bar; 230VAC; DN25; NO; Body: Stainless steel; Medium: Lubricated compressed air 210°C; Special seals; Incl. 2 inductive limit switches OPEN/CLOSED (B.); Special version

5-VFK32NC-526190

2/2-way coaxial valve; PN16; 0...16bar; 24VDC, DN32; NC; Externally controlled; Body: Stainless steel; Medium: Fuel; Incl. 5/2-way pilot valve; Special seals; ATEX; Incl. 2 inductive NAMUR limit switches OPEN/CLOSED (I.); Special version

VSVF65NC-540629

2/2-way coaxial valve, DN 65, PN 40 0-40 bar, NC, pilot-operated body: aluminium, medium: nitrogen 60°C special seal, 2 inductive limit switches (Icomatic 24VDC)

FK25NC-525012

2/2-way coaxial valve; DN25; PN40; 0...40bar; 110VDC; NC; Directly operated; Body: Stainless steel; Medium: Natural gas, Condensate, Heating oil; Special voltage; Special seals; Incl. mounting bracket; ATEX CEEx nA IIC T3/Ex tc IIICT 195°; And CE Ex II 3 GD c T4; Incl. 3 inductive limit switches; Incl. inspection certificate 3.1; Special version

CVT3-50-NC-002

3/2-way-coaxial valve; Directly operated; G2"; 0...16bar; 230VAC; DN50; NC; Body: Zinc plated steel; Medium: Diesel; Special seals; Incl. LED; Special version

SG06-15-UWN80-01

Control valve Type SG06, DN15; PN10/40; NC; Material: 1.0619; Fixed disc STN2; Sliding disc STN2/STN3; Kvs-value 0,26 (6,3%); Characteristic Linear; Actuator diameter 80mm; I/P-positioner 8047 With position indicator; Connector M12x1; IP54; Set in horizontal mounting position

EP0S11PEZ-EX

mounted positioner; digital I/P-positioner, 4-20mA; limit switches (slot-type proximity switches) type PF SJ-2SN (switch amplifier required); position feedback 4-20mA; II2G Ex ia IIC T4 Gb; area 1; actuator PAD052-270

CVT-25-NC-039

2/2-way coaxial valve; Directly operated; G1"; 0...100bar; 230VAC; DN25; NC; Body: Stainless steel; Medium: Demineralized water +60°C; Incl. LED; Special seals; Incl. 2 inductive limit switches OPEN/CLOSED (B.); Incl. inspection certificate 3.1; Special version

CVFV-P-40-NC-006

2/2-way coaxial valve; Externally controlled; DN40; PN16; 0...16bar; 24VDC; NC; Body: Stainless steel; Medium: Water; Incl. 5/2-way pilot valve; Special version

CVF-40-NC-032

2/2-way coaxial valve; Directly operated; Flange DN40; PN40; 0...40bar; 24VDC; NC; Body: Stainless steel; Medium: Distilled water; Special seals; Incl. LED; Incl. inspection certificate 3.1; Special version

SG33-15-UWF80-03

control valve type SG33, DN15; PN10/40; NC; material: zinc plated steel; fixed disc AISI 316Ti coated; sliding disc SFC; kvs-value 4 (100%); characteristic linear; Membrane drive 80cm²; digital positioner; 2-wire; 4-20mA; short execution

8044-GS1-020-4066674

020VE0001M------ZC GS1 control valve, DN20, PN10-40, NC body carbon steel, sliding pair standard, actuator D80 KVS= 6,4 (100%), linear, incl. digital positioner 8049-4 wire, 0-10V

SG08-20-WWFECA-01

Control valve with electrical actuator Type SG08; DN20; PN10/40; Body: Stainless steel AISI 316, Fixed disc 1.4571 Coated; Sliding disc SFC; Kvs-value 1 (16%); Characteristic linear; Safety position NC; Voltage 24V AC/DC; Control actuator CA24C; Setpoint value input 4-20mA; Position feedback 4-20 mA; 2 Limit switch; Operating time 12,5s

CVT-40-N0-006

2/2-way coaxial valve; Directly operated; 11/2"NPT; 0...63bar; 24VDC; DN40; NO; Body: Stainless steel; Medium: Water; Terminal box; Special seals; Incl. 1 inductive limit switch OPEN; ATEX CE Ex nA II T3 / CE Ex tc IIIC T195°C; Ex II 3G Ex h IIC T3 Gc; Ex II 3D Ex h IIIC T195°C Dc; Special version

8040-GS1-050-4045129

050VB0101M------M6 GS shut-off valve type 8040 DN50 wafer body PN10-40, housing made of stainless steel 1.4571, fixed sealing disc made of stainless steel 1.4571 coated, moving disc made of carbon material with metallic impregnation

4-MB-5-VMK15NC-553058

4-fold-Module block Consists of:#br#3 Pieces 5-VMK15NC-#####; DN15; Connection ISO-KF DN25;#br#1 Pieces 5-VMK10NC-#####; DN10; Connection G1/2"; 2/2-way coaxial valve; 0...40bar; NC; Externally controlled; Body: Brass; Medium: Helium/Air; Incl. 5/2-way pilot valve And LED; Special seals; Mounting bracket; Incl. Stainless steel End plate; Special version

CVFV-P-80-NC-004

2/2-way coaxial valve; DN80, PN40; 0...40bar; 24VDC; LED; NC; Externally controlled; Body: Aluminum; Medium: Emulsion; Incl. 5/2-way pilot valve; Special version

MK25DRNC-553057

3/2-way-coaxial valve; G1"-NPT; 0...16bar; 24VDC; DN25; NC; Directly operated; Body: Stainless steel; Medium: Air -25…+60°C; Special seals; Special thread; ATEX CE Ex nA II T3 And CE Ex tc IIIC T195°C; Incl. 2 inductive NAMUR limit switches OPEN/CLOSED (B); Incl. inspection certificate 3.1; Special version
